KEWELL  |  SKU: A2000PG-45K-450-90

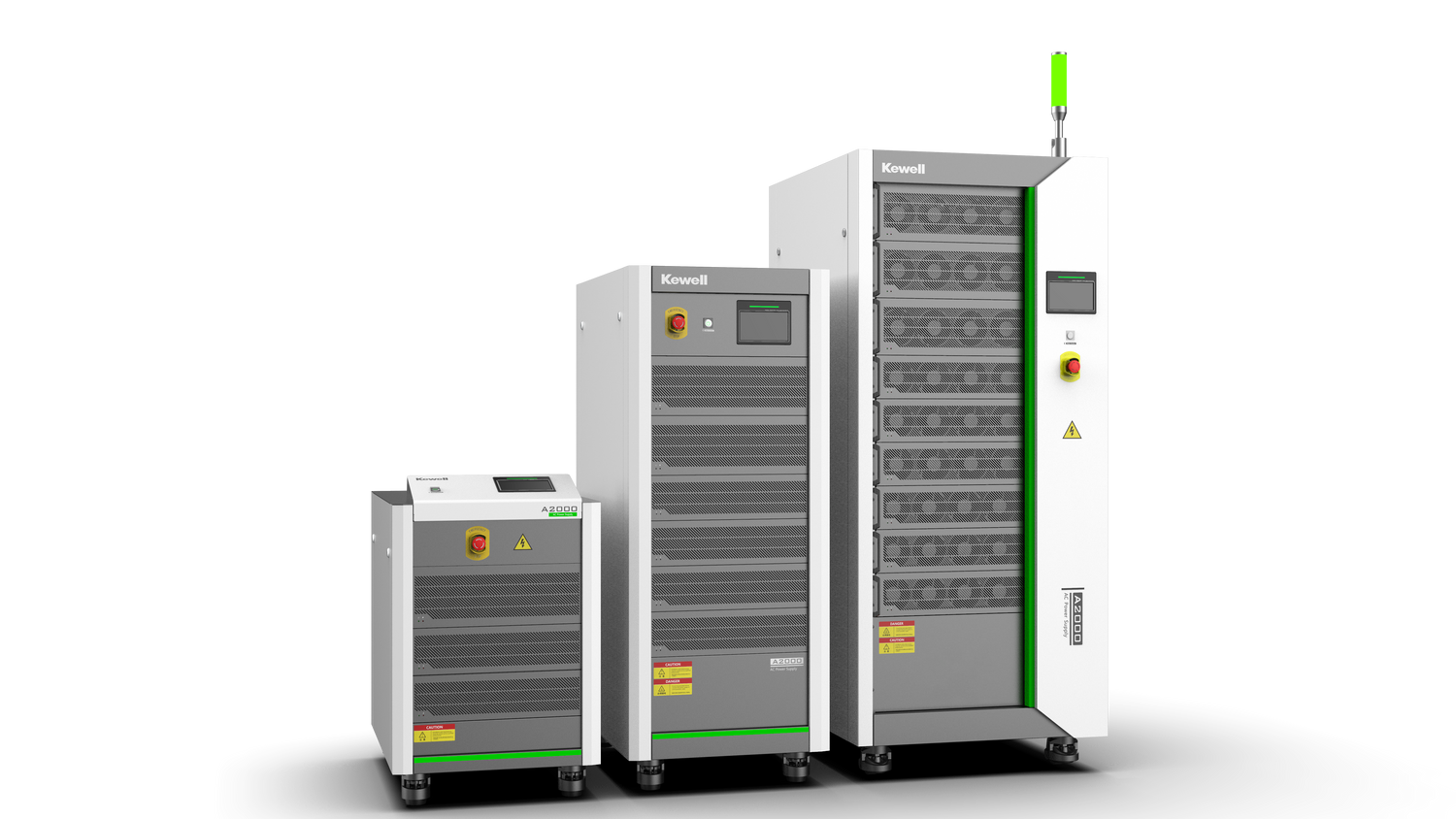

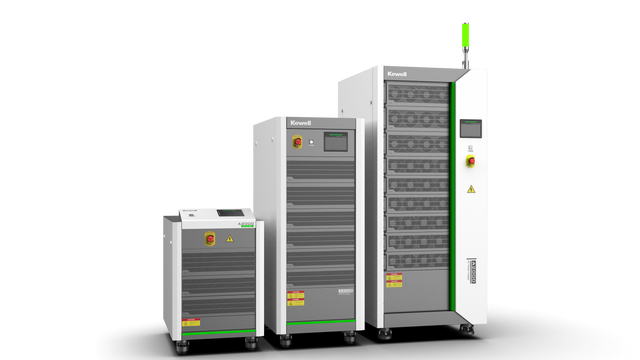

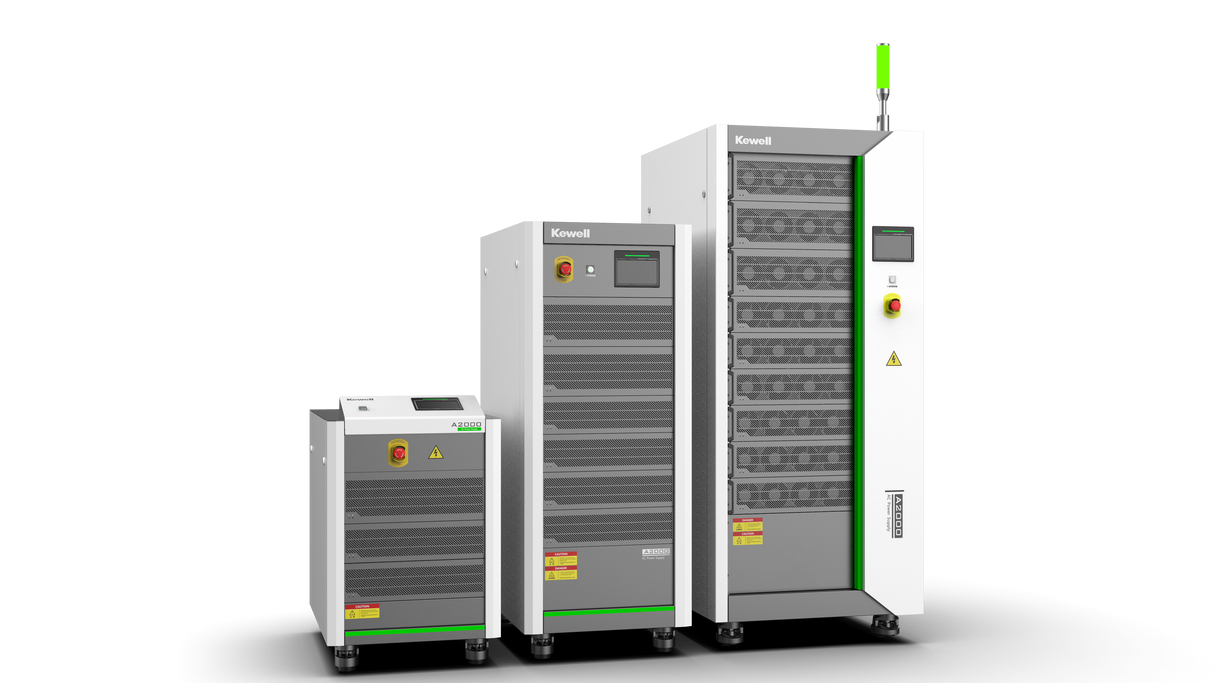

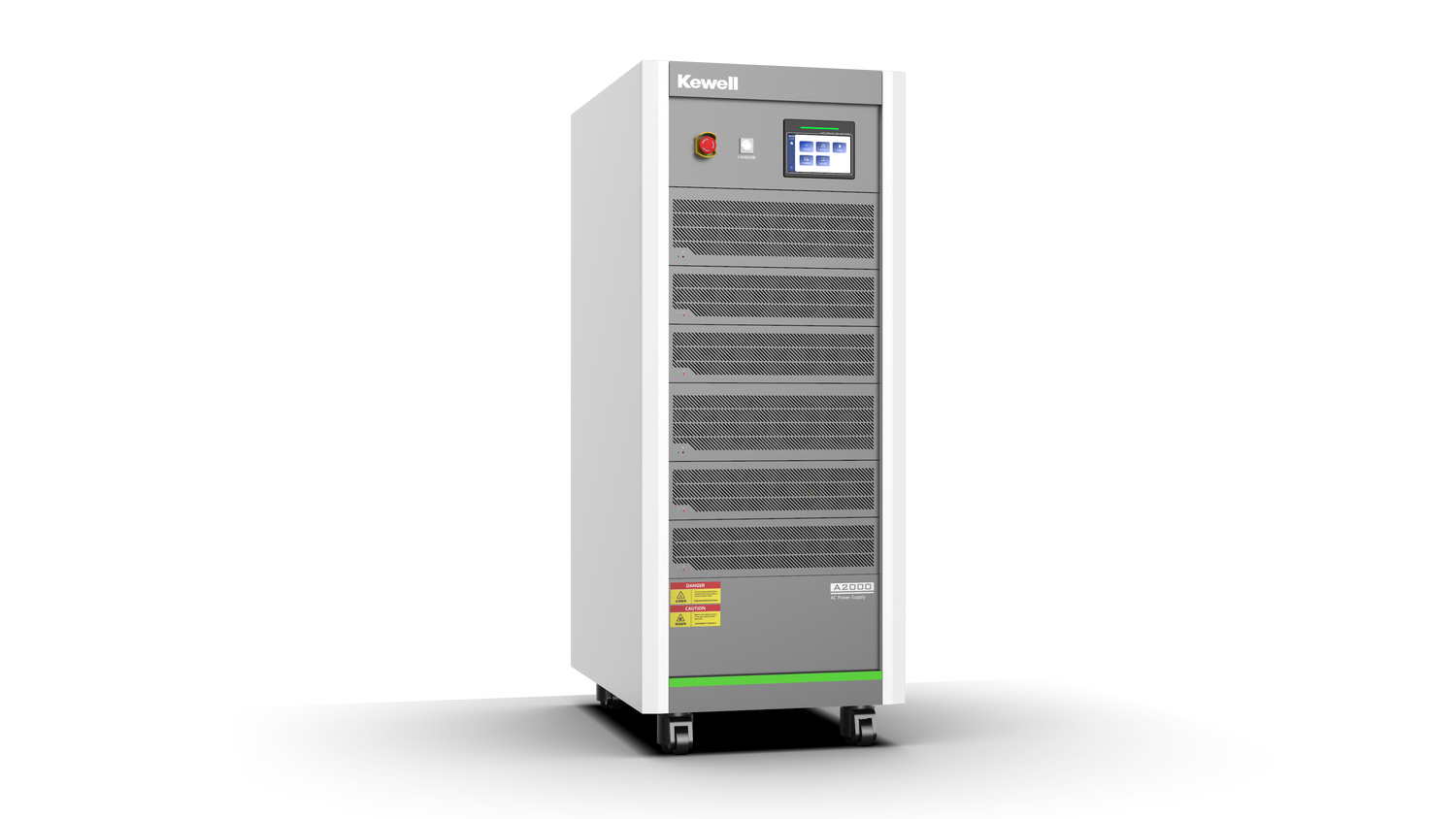

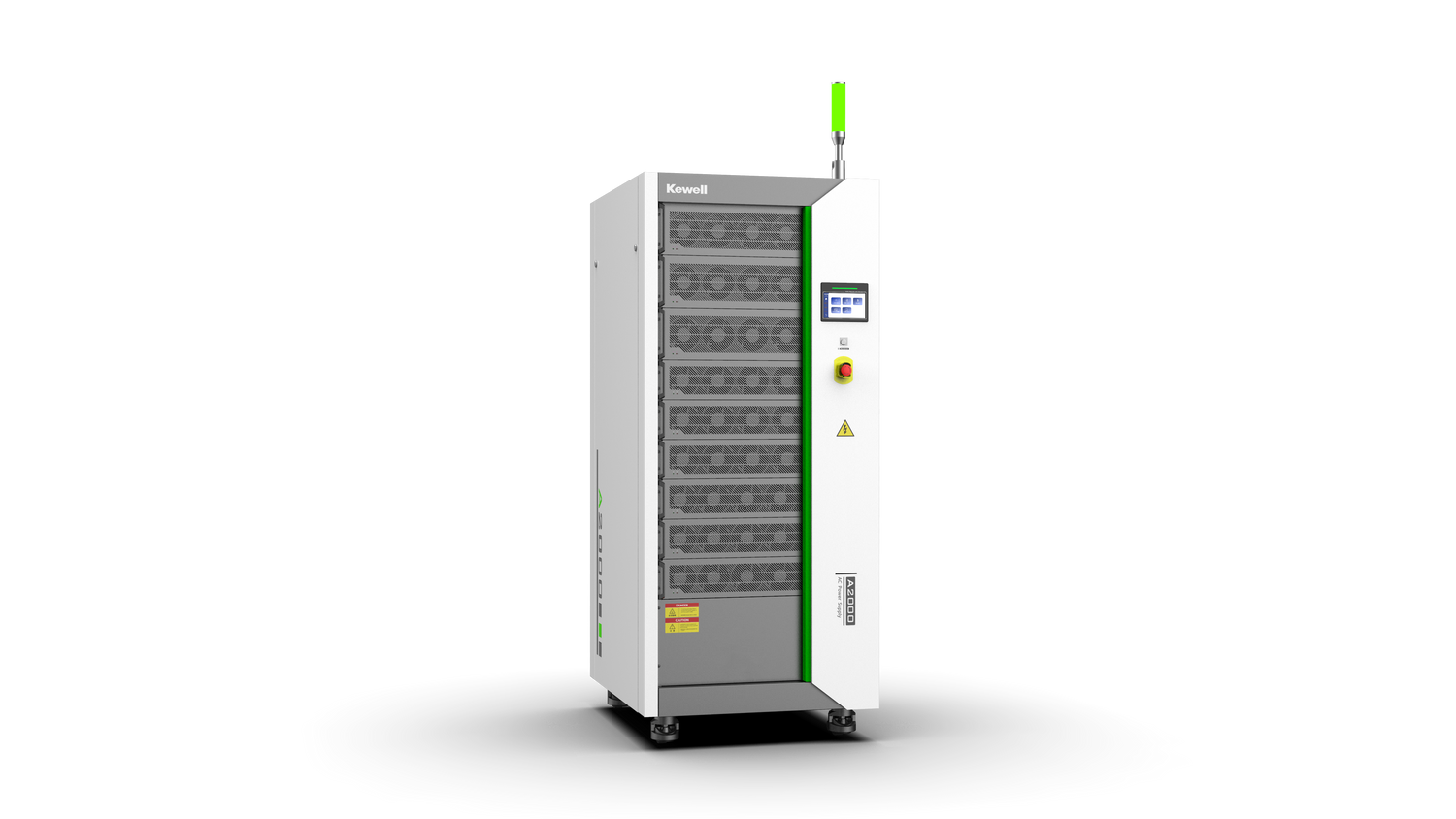

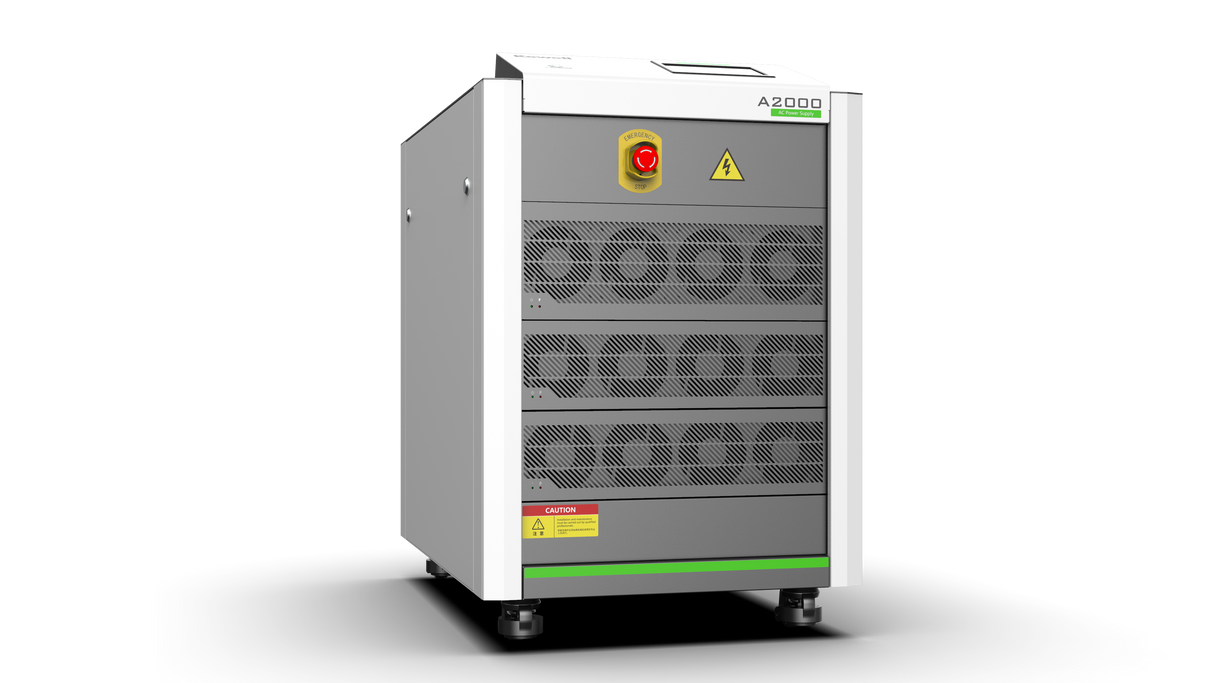

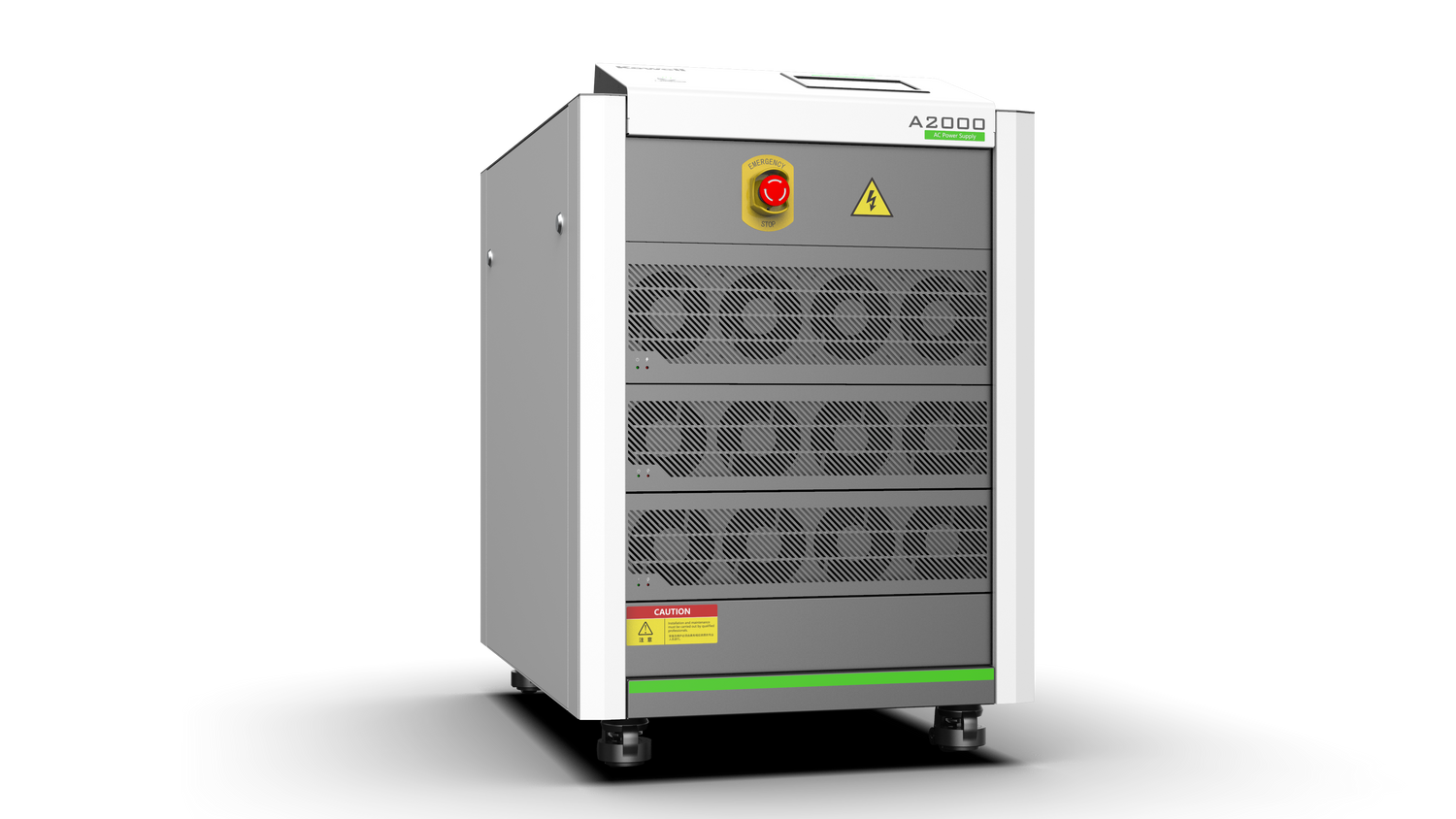

Kewell A2000 Pro config. Bidirectional Programmable AC Power Supply

The A2000NG series is a bi-directional programmable AC power supply featuring high accuracy, high dynamic response, and high efficiency. Adopting the all-new third-generation wide band-gap
semiconductor material—SiC, the product is highly modularized and standardized, offering industry leading performance + experience. The A2000NG series applies to PV and energy storage, new energy vehicle, AC/DC charging pile industries, as well as testing by research institutes and colleges and universities.

Voltage
Current
Power

Descrizione

Pro Configuration

Normal  Pro
features Fundamental,
Cost-effective		 Fully-featured,
Multi-scenario
Bi-directional AC power supply    YES YES
Voltage Ride-through    YES YES
Harmonic & Inter-harmonic Superposition    YES YES
Three-phase Unbalance    YES YES
Flicker    YES YES
AC Load    - YES

Caratteristiche

-Third-generation SiC design
-Electrically operated switch + TFT touch screen
-Voltage output range: 30~450V(L-N)
-Current output range: 0~342A
-Frequency output range: 40-70Hz
-Efficiency: up to 92.6%
-Unbalance,flicker simulation
-Comm. interface: RS485, LAN
-External emergency stop
-Multi-step programming
-Flexible parallel connection
-LVRT/HVRT/ZVRT
-Harmonics and inter-harmonics superposition
