R&S®ELEKTRA EMI Test Software

R&S®ELEKTRA EMItest software supports EMI measurements performed with Rohde&Schwarz EMI measurement receivers and spectrum analyzers. The test templates include relevant limit lines and transducer factors and greatly simplifies instrument setup. The measurements made are proven to be reliable. The software helps users archive and document measurement results.

ATTENTION R&S LICENSE DONGLE REQUIRED

Essential requirements for disturbance measurements have been combined into an easy-to-use application.
Test templates include measurement settings and define the test setup with accessories such as artificial communication networks and antennas.

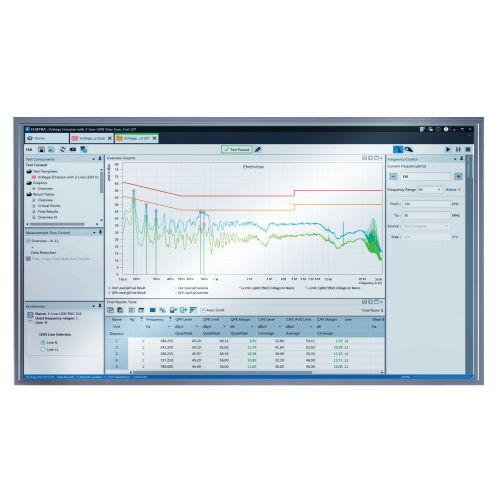

The software initially measures the frequency spectrum according to the template , provides a 'preview, and then compares it to the limit lines.
R&S®ELEKTRA performs the time-consuming operations and final measurement only when the disturbances exceed the limit references thus saving a lot of measurement time. A test report documents all results with the settings used.
The integrated database saves and manages the settings the measurement results and the report. Automatic backup ensures regular data backup at specified intervals.
The test models provided refer to major commercial and military standards. Through Rohde&Schwarz receivers and spectrum analyzers, users are able to perform fast and reliable EMI measurements.

Manuals

Elektra_bro_en_3607-6021-12_v0100-4

Elektra_EMC_bro_en_5216-3695-12_v0101_120dpi
