A real-time spectrum analyzer captures every signal in its frequency span continuously, with no gaps between measurements, so it can catch a transient event that a conventional swept spectrum analyzer would simply miss. That distinction matters more than it sounds: intermittent interference, frequency-hopping signals, and short bursts are exactly the events a traditional sweep is most likely to step over.
Why a conventional sweep can miss the signal
A traditional, or «swept», spectrum analyzer scans across its frequency range one step at a time, dwelling briefly at each frequency before moving to the next. If an event happens at a frequency the analyzer is not currently looking at, it is simply not recorded. For steady, continuous signals this is not a problem. For short, unpredictable events, it can mean the difference between catching the fault and never seeing it at all.
How real-time analysis closes that gap
A «real-time spectrum analyzer» (RSA) digitises the full span continuously and processes overlapping blocks of data fast enough to guarantee no signal is missed, regardless of when it occurs. The result is usually shown as a «spectrogram» or a density display, where colour intensity reveals how often a given frequency and amplitude combination occurs over time, making rare or intermittent events visible instead of hidden inside an averaged trace.
What this actually catches in practice
- Frequency-hopping signals, such as Bluetooth, that a slow sweep would only sample partially;
- Short interference bursts from switching power supplies or motor drives;
- Radar and pulsed signals that last only microseconds;
- Intermittent spurious emissions that only appear under specific operating conditions.
Real-time bandwidth: the number that actually matters

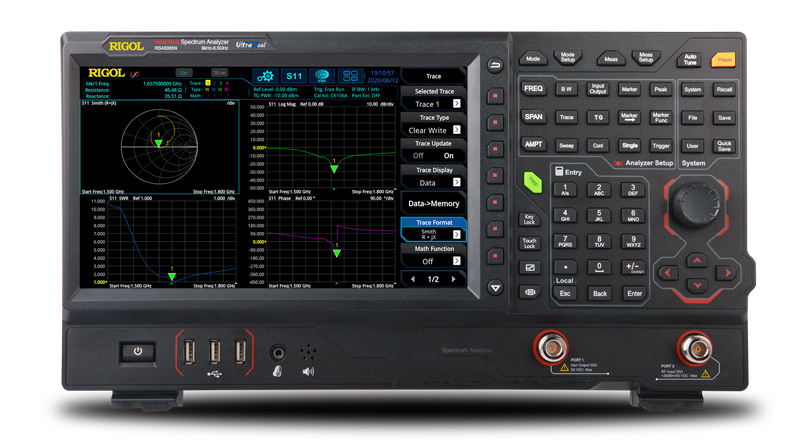

The key specification to check is «real-time bandwidth», the span within which the instrument guarantees gap free capture at its fastest settling time. A wide analysis span with a narrow real-time bandwidth still leaves blind spots outside that window. Instruments such as the Rigol RSA800 series combine real-time capability with a tracking generator, letting the same instrument perform both signal analysis and component testing.
ALLdata's role
Specifying a spectrum analyzer for interference hunting, EMC pre-compliance, or RF production testing means matching real-time bandwidth, frequency range, and dynamic range to the actual signals involved, not simply the widest span available. ALLdata's engineering team helps Research, Defense, and production teams choose the right instrument for the events they actually need to catch.
