Signal integrity is the study of whether a digital signal still looks like the waveform it was meant to be by the time it reaches its destination. As clock speeds and data rates climb, the margin for error shrinks, and problems that a slower oscilloscope simply cannot see start to determine whether a board actually works.
Why bandwidth is not just a bigger number
An oscilloscope's bandwidth sets a hard limit on what it can show you: signal content above that frequency is attenuated and effectively invisible. A fast digital edge is not a single frequency, it is built from many harmonics, and the faster the edge, the higher the harmonics that shape its true rise time. An oscilloscope with insufficient bandwidth rounds off exactly the detail that reveals overshoot, ringing, or a marginal edge, showing a clean looking waveform that hides a real problem.
What signal integrity problems actually look like
- «Ringing»: oscillation after a transition, caused by impedance mismatches or excessive inductance;
- «Overshoot» and «undershoot»: the signal exceeding its intended level before settling;
- «Jitter»: variation in the timing of edges from one cycle to the next;
- Crosstalk: unwanted coupling from a neighbouring signal or trace.
Every one of these effects is easy to miss on a low bandwidth instrument and easy to catch once you have enough bandwidth, sample rate, and memory depth to resolve it properly.
Memory depth: the specification that gets overlooked

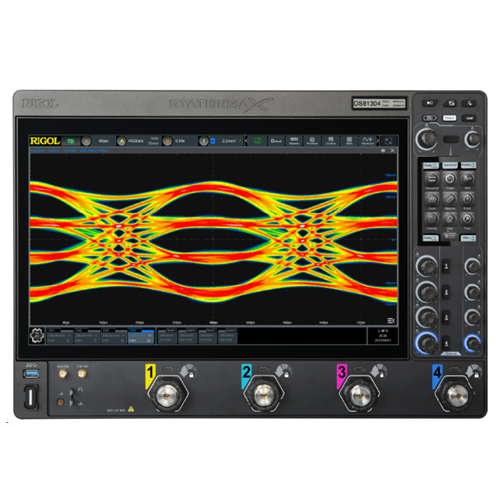

A high sample rate is only useful for as long as the oscilloscope's memory can sustain it. Long acquisitions at full sample rate need deep memory. Run out of it, and the instrument automatically reduces the effective sample rate to keep recording, quietly discarding exactly the resolution you needed. High bandwidth instruments such as the Rigol DS9000 series are built specifically to sustain high sample rates over long capture windows, so a long acquisition does not silently lose the fine detail signal integrity work depends on.
When you actually need this level of instrument
Not every design needs gigahertz class bandwidth. The right question is not how fast your clock is, but how fast your actual edges are, since a modest clock frequency can still have very fast, harmonic rich transitions. High speed serial links, DDR memory interfaces, and RF adjacent digital designs are the typical cases where a general purpose bench oscilloscope runs out of headroom.
ALLdata's role
ALLdata helps R&D and production teams match oscilloscope bandwidth, sample rate, and memory depth to the actual signal integrity requirements of a design, rather than over or under specifying the instrument.
Not sure whether your current oscilloscope has the headroom your next design will need? Talk to an ALLdata engineer, or browse our oscilloscope range.
