A DAQ system, short for «Data Acquisition» system, reads measurements from many channels over long periods and records the results, rather than displaying a single fast waveform the way an oscilloscope does. Where an oscilloscope is built to capture microseconds of detail on one or a few channels, a DAQ system is built to watch dozens or hundreds of points for hours, days, or longer, and to keep every reading.
What makes a DAQ system different from an oscilloscope
The two instruments solve different problems. An oscilloscope prioritises sample rate and bandwidth: it needs to capture fast transitions in fine detail, usually over a short window of time. A DAQ system prioritises channel count and logging duration: it needs to monitor temperature, voltage, current, or resistance across many points at once, and keep a continuous record over a much longer period. Using an oscilloscope to log a slow thermal test would waste its speed and quickly run out of memory; using a DAQ system to catch a nanosecond glitch would simply miss it.
The building blocks of a modular DAQ system

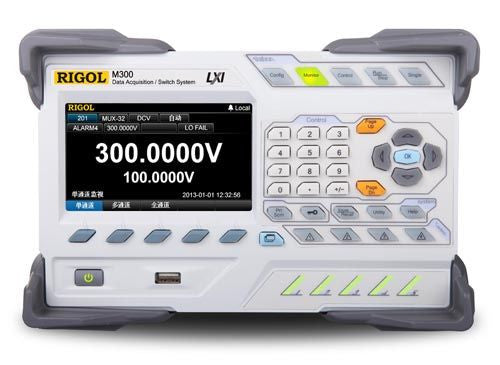

A typical modular system, such as the Rigol M300 mainframe, is built from a chassis that hosts interchangeable modules: a «multiplexer» module to switch between many input channels, a «DMM» module such as the MC3065 to perform the actual precision measurement, and signal conditioning for specific sensor types, thermocouples, RTDs, strain gauges. This modularity is what lets the same mainframe serve very different applications, from thermal chamber monitoring to production line electrical testing, simply by changing the module configuration.
Typical applications
- Thermal profiling and environmental chamber monitoring;
- Battery and cell testing, logging voltage and temperature over long cycles;
- Production line functional testing across many test points;
- Long term structural or environmental monitoring in research.
How many channels do you actually need?
It is tempting to size a DAQ system by the number of channels needed today, but the more useful question is how the test program is likely to grow. A modular mainframe with spare slots costs little more up front and avoids a costly replacement once a project adds a few more measurement points.
ALLdata's role
ALLdata helps laboratories and production teams design DAQ configurations around the actual measurement plan: channel count, sensor types, sampling rate, and software integration, rather than a generic, one size fits all setup.
