A VNA, or «Vector Network Analyzer», measures how a device responds to a signal across a range of frequencies: how much of that signal it reflects back, how much it lets through, and how it changes the signal's phase along the way. Where an oscilloscope shows a voltage over time, a VNA shows the behaviour of a component or a network as frequency changes, which is exactly what matters for antennas, filters, cables, and RF front ends.
What «vector» actually adds
A scalar measurement only tells you the magnitude of a signal: how strong it is. A vector measurement captures both magnitude and phase. That distinction matters because two devices can reflect the same amount of energy yet behave completely differently in a real system, depending on the phase relationship between the incident and reflected signal. A VNA captures both, which is why it can fully characterise impedance, not just signal strength.
S-parameters: the language of the VNA
The results of a VNA measurement are expressed as «S-parameters», scattering parameters. For a simple two port device, S11 describes how much signal is reflected at the input, and S21 describes how much signal is transmitted through to the output. Reading an S21 trace that dips sharply at a certain frequency, for example, is how you identify a filter's cutoff point or an unwanted resonance.
What you actually test with a VNA
- Antenna return loss and impedance matching;
- Filter response and insertion loss;
- Cable and connector integrity;
- Amplifier gain and stability across frequency.

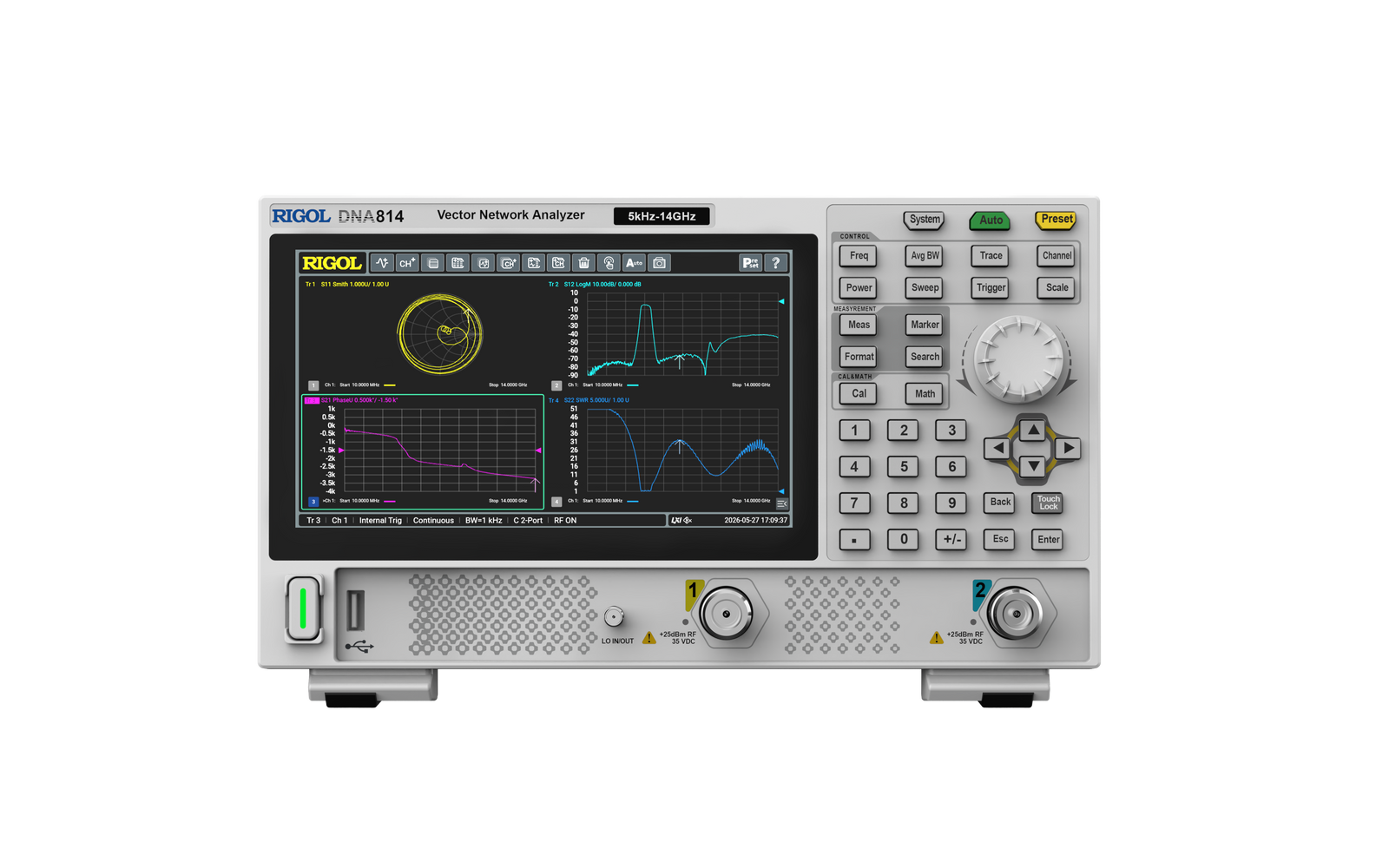

Entry level instruments such as the Rigol DNA800 series cover the frequency ranges most commonly needed for these tasks, from a few kilohertz up into the multi gigahertz range, making two port vector measurements accessible outside dedicated RF labs.
VNA or spectrum analyzer: which one do you need?
A spectrum analyzer answers one question: what frequencies are present in this signal, and how strong is each one. A VNA answers a different question: what does this device do to a signal sent through it, across frequency. If you are characterising a component, an antenna, a filter, a cable, you need a VNA. If you are looking at an unknown or a broadcast signal, you need a spectrum analyzer.
ALLdata's role
Choosing the right VNA means matching frequency range, number of ports, and dynamic range to the application, whether that is production line testing of RF modules or R&D characterisation of a new antenna design. ALLdata supports Defense, Aerospace, and Research organisations in specifying and deploying the right RF test setup for their requirements.
