GW Instek  |  SKU: 03UNDM531000

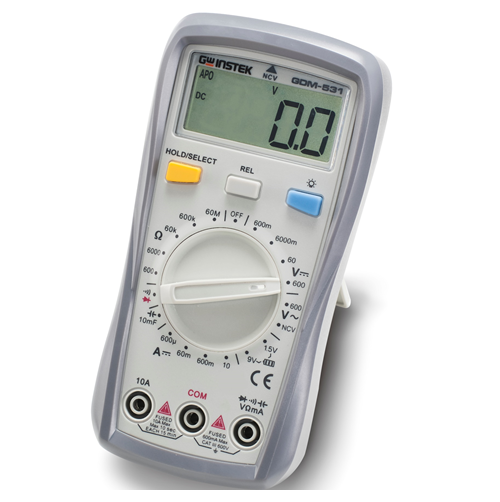

GW Instek GDM-531 6000 Counts Handheld Digital Multimeter


The GDM-500 series portable multimeter is a compact, high-accuracy, battery-powered multimeter designed to meet the application requirements of service technicians. The design of the GDM-500 series follows some features typical of mobile devices : automatic power off to preserve battery life, a large backlit display for a crisp view, a rotary and push-button selector for ease of use, and NCV (non-contact voltage detection) function for outdoor use.

The basic functions of the series match the extended functionality of benchtop multimeters: fuse-protected current input, true rms for accurate AC measurements, audible/visual overload alarm, automatic measurement, duty cycle and relative mode. The compact, reliable and economical GDM-500 series is ideal for a variety of uses.


Description

MODEL GDM-531
SKU 03UNDM531000
Max. Display 6000
Auto Ranging
Analog Bar
True RMS
Display Backlight
Auto Power off
Curr. Range Protection Fuse
DC Voltage 600V
AC Voltage 600V
DC Current 10A
AC Current
Resistance 60MΩ
Capacitance 9,999mF
Frequency
Diode
Continuity
Temperature
Duty Cycle(%)
Transistor(hFE)
NCV Function
REL
Data Hold
Peak Hold
MAX MIN
LoZ ACV
LPF ACV
Audible / Visual Alarm
AC+DC Measurement
Interface
Safety Rating CAT III 600V

Features

GDM-531 FEATURES

  • 6000 Counts Manual Ranging
  • Display Backlight/Auto Power Off
  • Capacitance Measurement
  • Non-Contact Voltage (NCV) Detection
  • Data Hold
  • Audible/Visual Alarm when Overload
