Rigol  |  SKU: SPQ

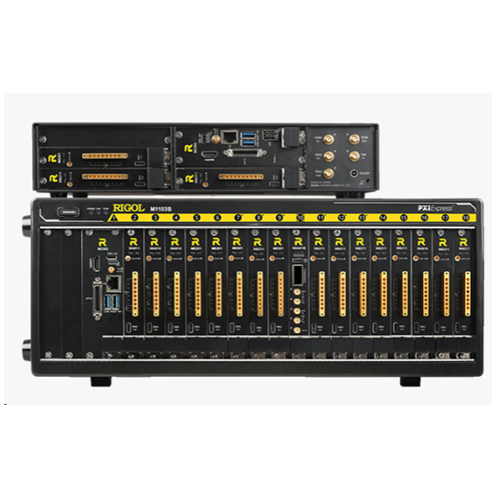

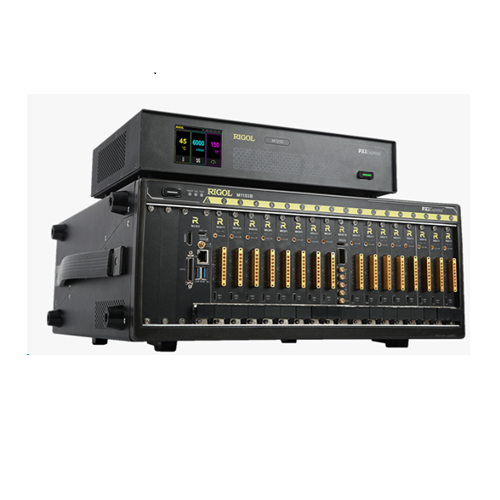

Rigol SPQ Digital Array Measurement-and-Control System interface per Quantum

TO REQUEST A QUOTE FOR THIS PRODUCT, PLEASE CONTACT US DIRECTLY
info@alldata.it

RIGOL’s SPQ Digital Array Measurement-and-Control System targets advanced-computing tests. A modular layout assigns microwave control, data capture/analysis with real-time feedback, bias-voltage with microwave overlay, and clock/trigger distribution to dedicated modules. Now instruction-set driven, SPQ removes many legacy pain points. Already running stably at dozens of sites, it has become a benchmark in this field.

Descrizione
serie characteristics
Microwave Control Sample Rate
 6/8/10 GSa/s
Microwave Read Sample Rate  3/4/5 GSa/s
Resolution  14 bit
Frequency Range  0.1GHz-9.8GHz



Ref to attached datasheet for more details on the following modules :
M6301 PQ-XY Microwave Control Module
M6311 PQ-ZC Bias Control Module
M4910 PQ-RD Microwave Readout Module
M4911 PQ-MC Microwave Measurement  and Control Module
M8401B PQ-S10 Clock Synchronization Module
M8402B PQ-S10Pro Clock Synchronization Module
M2302 PQ-M02 Controller
M2601 PQ-R01 Remote Controller
M1103B PQ-C16 Array Measurement and Control Platform
M1210 PQ-C02 Small-Scale Measurement and Control Platform

Caratteristiche

Manuali

SPQ datasheet

SPQ quick guide
