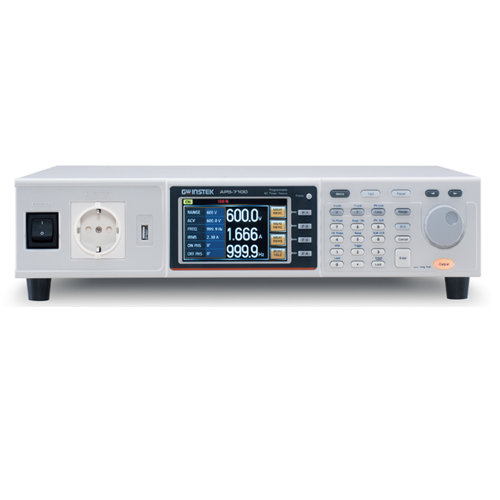

GW Instek APS-7100E 1000VA linear AC power supply unit . (Universal) socket

GW Instek launches the APS-7000E series, an economical version of the APS-7000 series.
With a 'height of 2U, the maximum rated output for the APS-7050E is 500VA, 310Vrms, 4.2Arms while for the APS-7100E it is 1000VA, 310Vrms, 8.4Arms.

The output frequency range of the series varies from 45 to 500Hz. It's series is ideal for testing and development of DC power devices, consumer electronics, automotive electronics and electronic components.

The APS-7000E series includes six measurement and test functions (Vrms, Irms, F, Ipk, W, PF) and provides a user interface very similar to that of an AC Power Meter. The APS7000E series, due to the ease of switching between different current levels is ideal for the LED industry and standby mode power consumption testing.
Ten sets of presets allow users to store as many as ten settings.

In addition to offering a very stable AC power source, the APS-7000E series also features Test mode to meet both special and abnormal frequency and voltage variation requirements.

The ten sets of the Test mode simulate power failure, voltage rise and fall. The APS7000E series since it simulates the waveforms of transient changes in the city power grid is suitable for testing electronic products operating with an abnormal power source.

The APS-7000E series is the economical version of the APS-7000 series. If the user needs a communication interface and higher voltages and frequencies, refer to the APS-7000 series.
