Chroma  |  SKU: chr61508

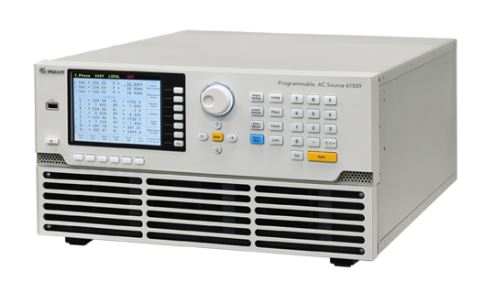

Chroma 61508 Programmable AC Power Supply 0-350V, 15Hz-2KHz / 4.5KVA, 1-3Ø

Unlike the 61600 series , the 61500 series allows users to define different harmonic components and analyze harmonics and distorted waveforms . By applying this advanced function, users can program a scan frequency to a given voltage and thus analyze the resonance points of the UUT.

Description



MODEL 61508
Power Rating 4500VA
Phase 1 or 3 selectable
Voltage Range 0-175V/0-350V/Auto
Frequency 15Hz~2000Hz
Parallel Capability Available



Features

61500/61600 series features:

  • 5U high power density design
  • Single-phase or three-phase output selectable
  • Programmable slew rate setting for changing voltage and frequency
  • Programmable voltage and current limit
  • High output current crest factor for inrush current testing
  • Turn on and turn off phase angle control
  • TTL signal which indicates output transient
  • LIST, PULSE, STEP mode functions for testing Power Line Disturbance (PLD) simulation (61500 series only)
  • Voltage dips, short interruption, and voltage variation simulation
  • Harmonics and inter-harmonics waveform synthesizer (61500 series only)
  • Comprehensive measurement capability including current harmonics (61500 series only)
  • Analog programmable interfaces
  • Remote interface: GPIB, RS-232, USB, and Ethernet
  • Higher output power capability by implementing master-slave parallel output function
