Astronics  |  SKU: FaultFinder

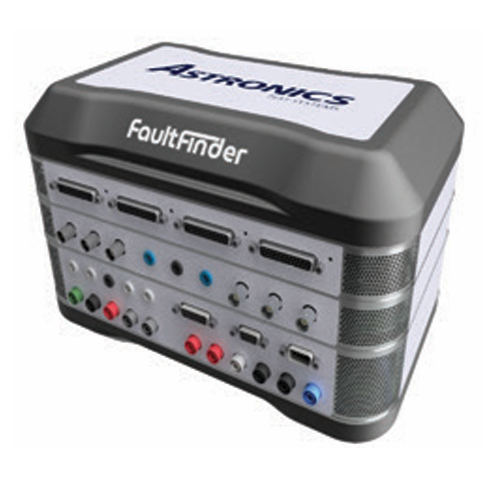

Astronics: ETS FaultFinder


FaultFinder is a configurable system and can be expanded to meet application requirements. Quadrature Signature Analysis, LCR bridge, Parametric Measurement Unit, Shorts Locator, DMM (2 and 4 wire).

Description

The FaultFinder Electronic Troubleshooting System (ETS) condenses extensive circuit card troubleshooting capabilities into a compact design. Tailored for user convenience, it places essential tools right at the technician’s fingertips and streamlines repairs while capturing vital data necessary for addressing complex circuit card faults.

Features

Fault Finder features

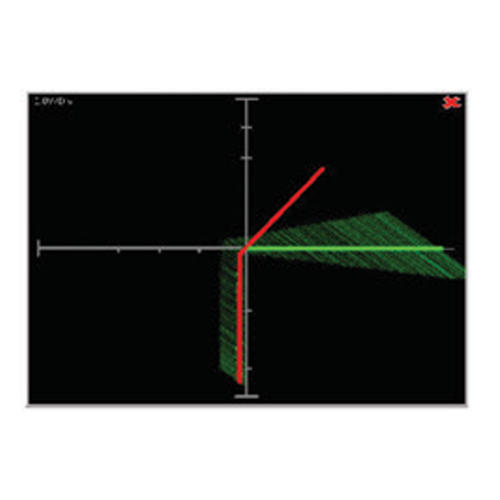

• Full quadrature Signature Analysis with Pulse mode for gate fired devices
• LCR bridge for accurate testing of passive components both in and out of circuit
• Parametric Measurement Unit for testing of discrete compo nents and circuits, e.g. hFE of transistors & input leakage
• Shorts Locator to identify the exact point at which a short circuit is located
• DMM (2 and 4 wire), AC/DC, Resistance, Diode, etc.

Manuals

datasheet FAULT FINDER
