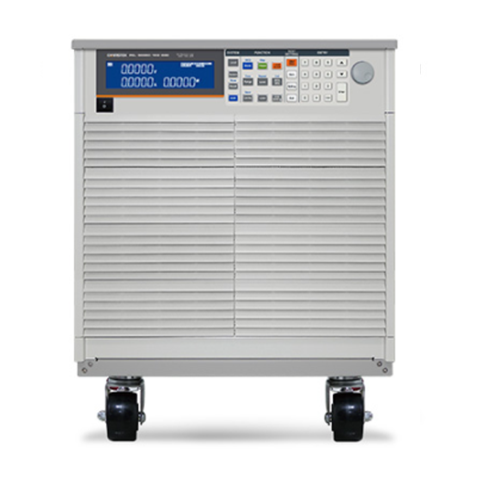

GW-Instek PEL-5012C-150-1200 Programmable DC Load (150V/ 1200A/ 12KW)

Model specifications PEL-5012C-150-1200

The GW Instek PEL-5000C series includes 150 V / 600 V / 1200 V single-channel electronic loads with a power range from 6kW ~ 24kW . The series consists of 24 models with different combinations of power , voltage and current. They can test and verify batteries as per specification , electric vehicle chargers / charging stations, electric vehicle batteries and solar panels. PEL-5000C supports parallel connection for the same voltage specifications. PEL-5000C can support up to 8 units connected in parallel to provide a maximum power of 192kW.

In battery testing, the PEL-5000C series specifically provides four battery discharge modes, namely CC + CV, CP + CV, CC + UVP and CP + UVP modes , offering users the mode that best suits their testing requirements.
PEL-5000C also provides time period discharge, pulse discharge and ramp discharge modes. It is also possible to set the increasing/decreasing rate of change of discharge current.
These functions provide all the flexibility required in simulating the battery discharge current waveform when an electric vehicle is running.
In order to meet the verification requirements of different DUTs, PEL-5000C provides a variety of test functions, including inrush current test mode, solar panel MPPT test mode, automated OCP, OPP test functions and 150 sets of parameter storage functions.

PEL-5000C has a built-in slow starter, which not only protects the DC load, but also saves user installation cost and setup time for metering.

PEL-5000C series features .

-Maximum power up to 192KW
-Up to 8 units of master/slave parallel control
-5-digit digital voltage, current and power meter
-Large LCD Display
-Display voltage value, current value, watt value at the same time
-Suitable for power factor regulator (PFC) testing (600V, 1200V models)
-Automatically perform OCP, OPP test
-The power-on state value can be set
-Constant current, constant resistance, constant voltage, constant power, constant current + constant voltage, constant power + constant voltage, dynamic and short circuit modes
-Short circuit time can be set during short circuit test
-Over current, over power, over temperature protection and over voltage warning
-Voltage polarity display can be set to positive value ("+") or negative value ("-")
-Support solar panel MPPT test
-Optional interface: GPIB, RS232, USB, LAN

Serie_PEL5000C_brochure
Serie_PEL5000C_Specification
