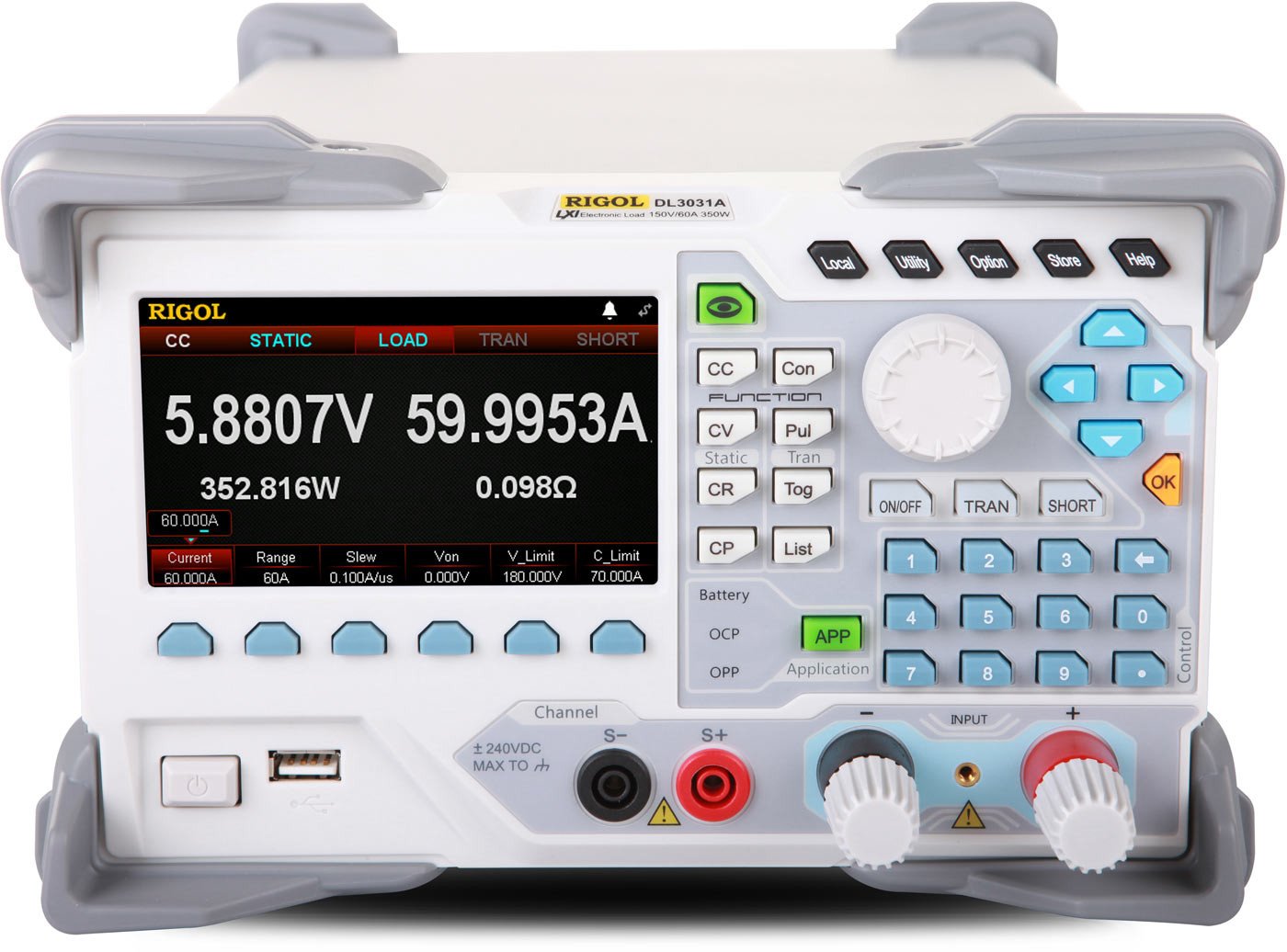

Rigol DL3031A 350W (150V 60A) Programmable Load

DL3000 is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells.

Description
Models DL3021 DL3021A DL3031 DL3031A
Max. Power 200W 200W 350W 350W
Max. Voltage 150V 150V 150V 150V
Max. Current 40A 40A 60A 60A
Min. Voltage 40 A @ 1 V 40 A @ 1 V 60 A @ 1.3 V 60 A @ 1.3 V
Channels 1 1 1 1
Dynamic mode 15kHz 30kHz 15kHz 30kHz
Display 4.3-inch TFT LCD 4.3-inch TFT LCD 4.3-inch TFT LCD 4.3-inch TFT LCD
LAN, RS232 und Digital IO Ports Yes Yes Yes Yes



Features

Programmable linear power supply, maximum power 150W, single output, 30V 5A.

  • DL3021/DL3021A: single channel, DC150 V/40 A, total power up to 200 W
  • DL3031/DL3031A: single channel, DC150 V/60 A, total power up to 350 W
  • Dynamic mode: up to 30 kHz
  • Adjustable current rising speed: 0.001 A/μs to 5 A/μs
  • Min. readback resolution: 0.1 mV，0.1 mA
  • 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
  • Overvoltage/overcurrent/overpower/overtemperature/reverse
    voltage protection
  • 4 static modes: CC, CV, CR, CP
  • 3 dynamic modes: continuous, pulsed, toggled
  • List function supports editing as many as 512 steps
  • Battery test function, OCP test, OPP test, factory test function, etc.
  • Short-circuit test function
  • Power-off memory function
  • Built-in RS232/USB/LAN communication interface
  • USB-GPIB module (optional)

Manuals

Datasheet Rigol DL3000 series

UserGuide Rigol DL3000 series
