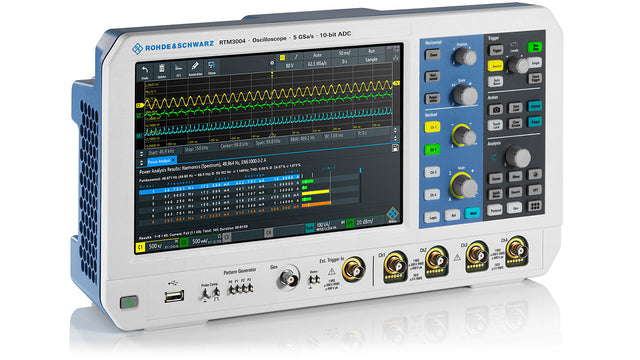

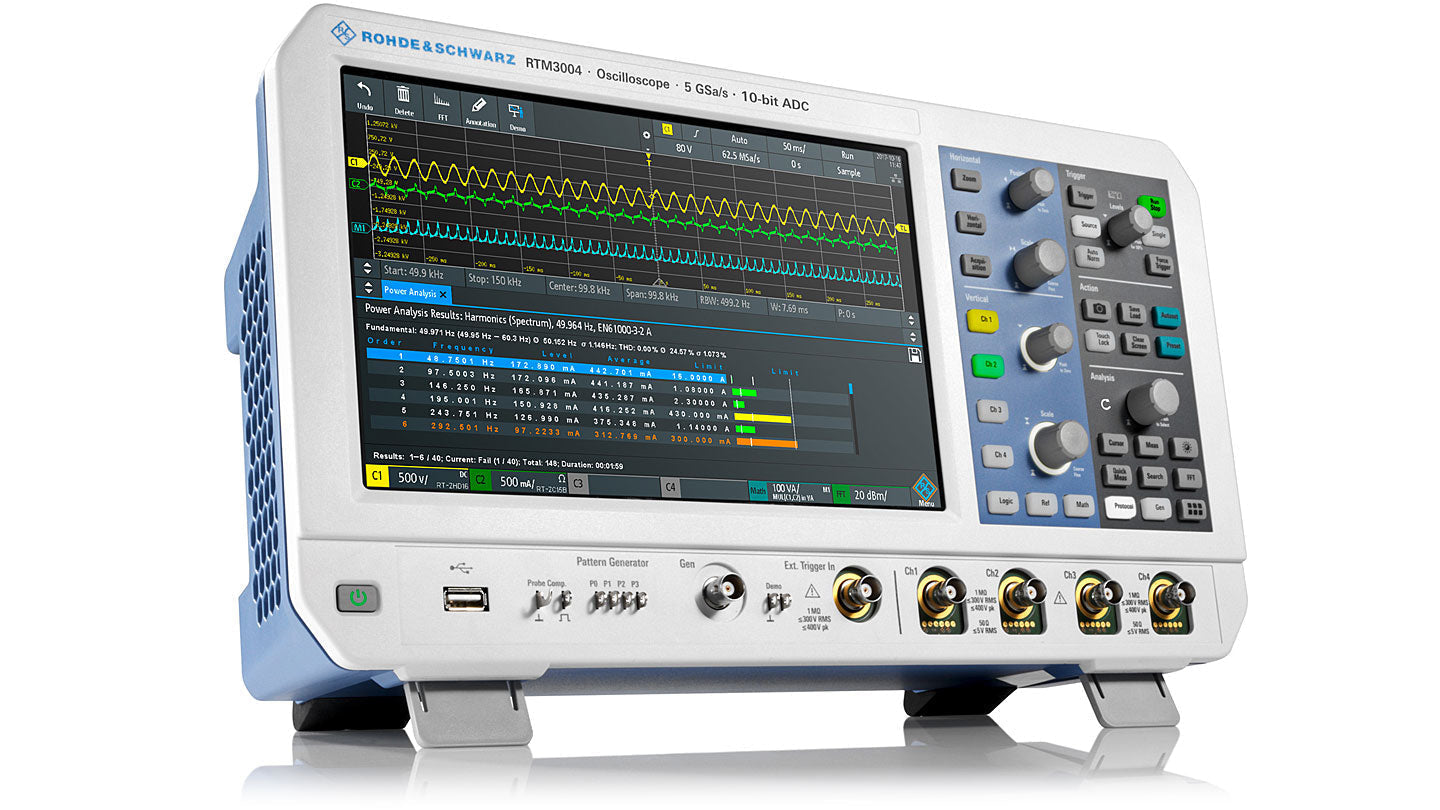

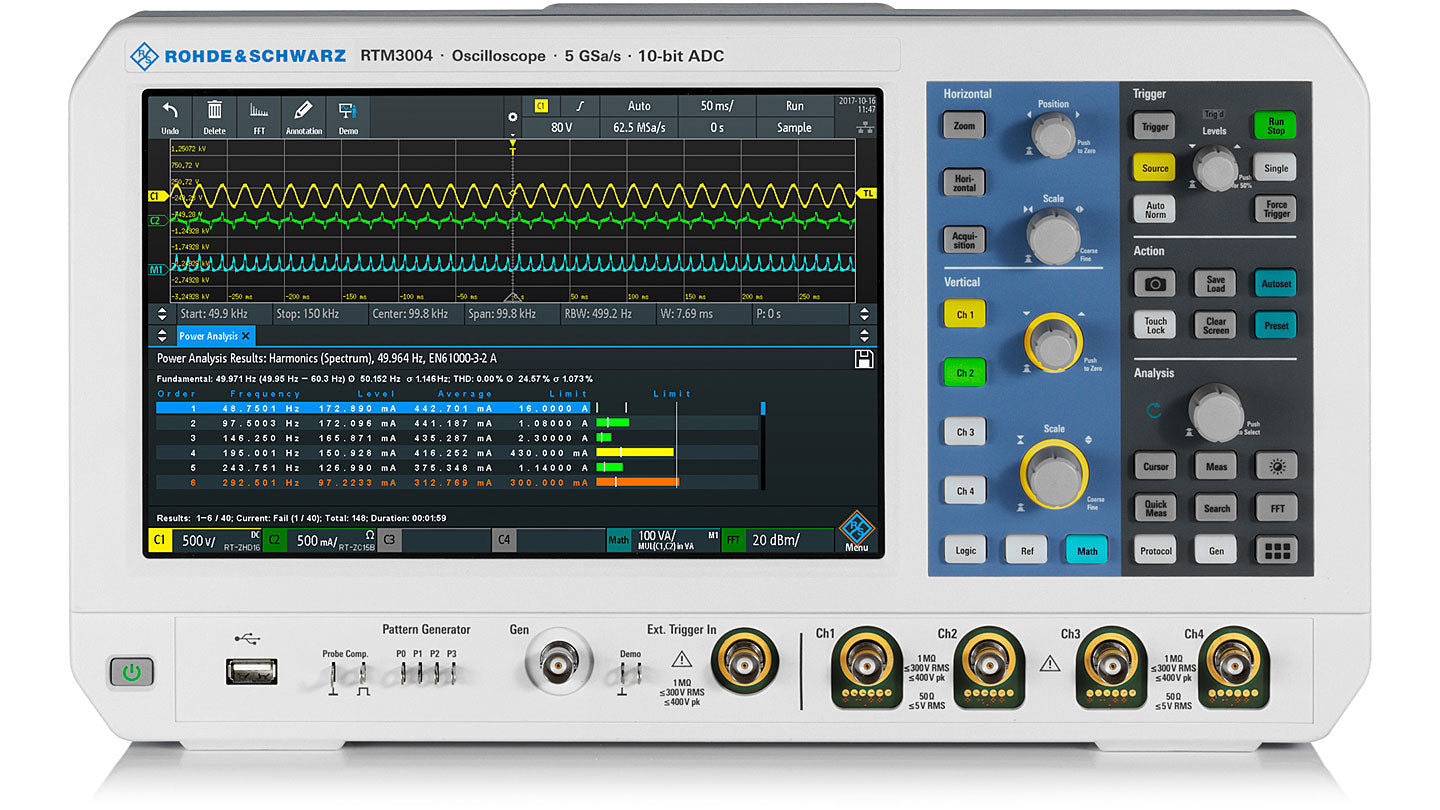

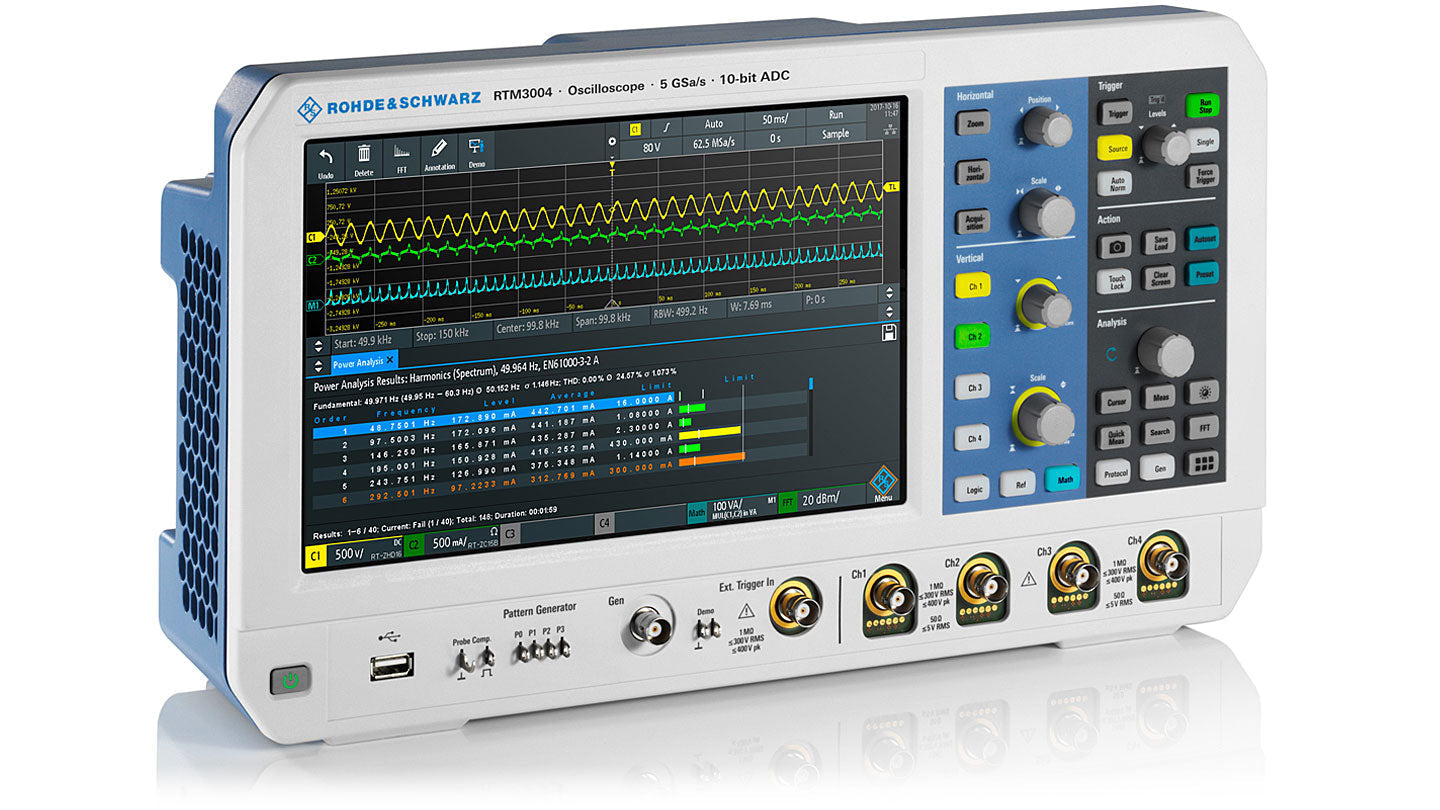

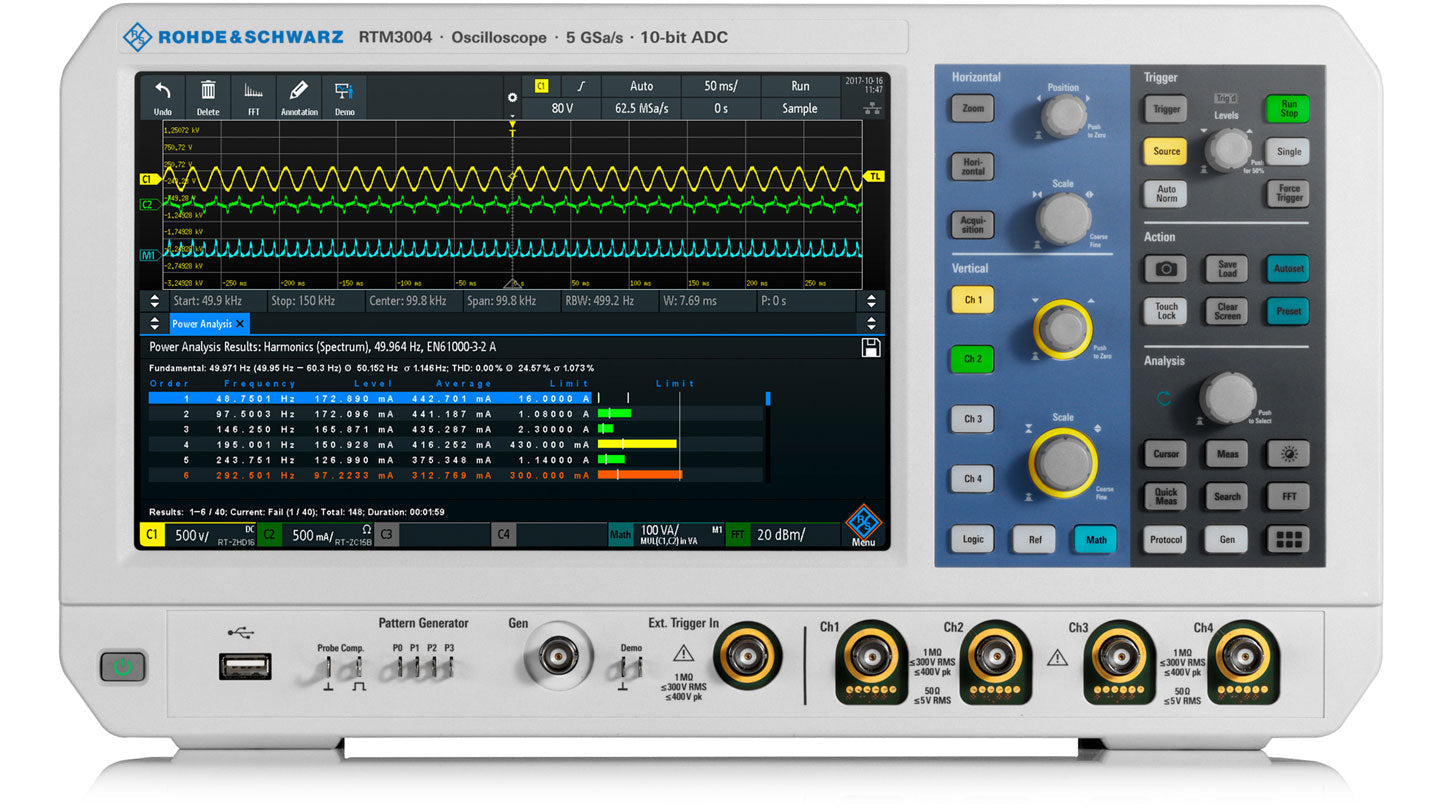

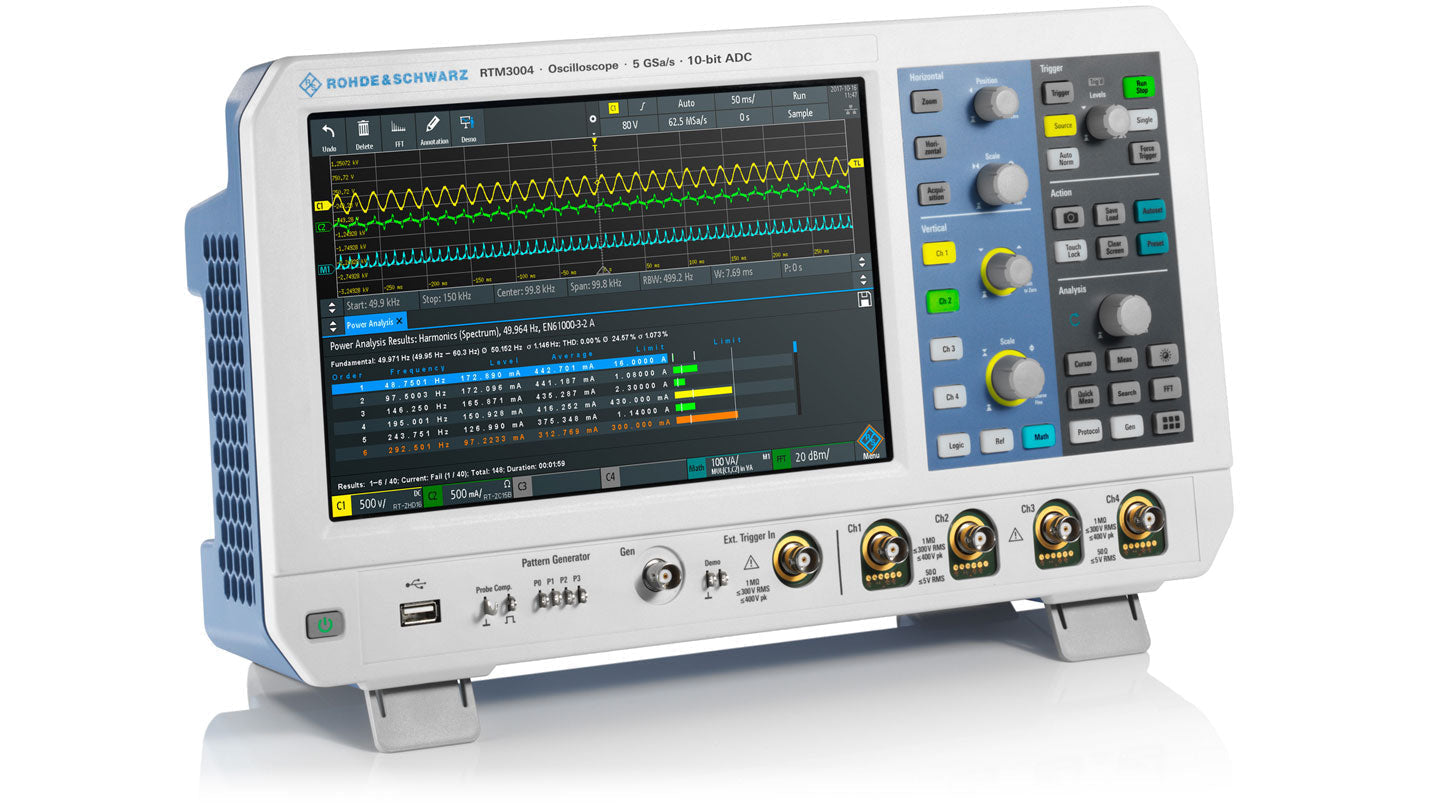

R&S® RTM3004 + RTM-B245 500 MHz Oscilloscope, 4 Channels

Next-generation multi-domain oscilloscope

The RTM3K-54 (R&S®RTM3004 + R&S®RTM-B245) from Rohde & Schwarz is a 4-channel RTM3000 series digital oscilloscope with 500 MHz bandwidth upgrade. It features a 10.1-inch high-resolution (1280 x 800 pixels) capacitive TFT touchscreen with gesture support, 10-bit ADC and 40Msample/channel standard, 80Msample interleaved memory depth. The oscilloscope includes a wide range of expansion options.

Features

• Segmented acquisition memory: 400Msample (optional)
• Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved
• Waveform update ratio: 64000 waveforms/s
• Minimum input sensitivity 500µV/div
• Startup time: 10 seconds
• Protocols I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio (I²S), ARINC, MIL (optional)
• Arbitrary waveform and optional 4-bit pattern generator
• Standard digital voltmeter and trigger counter
• LAN, USB host/device, fast display over Ethernet connectivity
• Oscilloscope measurements: 390mm x 220mm x 152mm (W x H x D)

R&S® RTM3K-54 (RTM3004 + RTM-B245) Oscilloscope 500 MHz, 4 channels

Datasheet PDF
