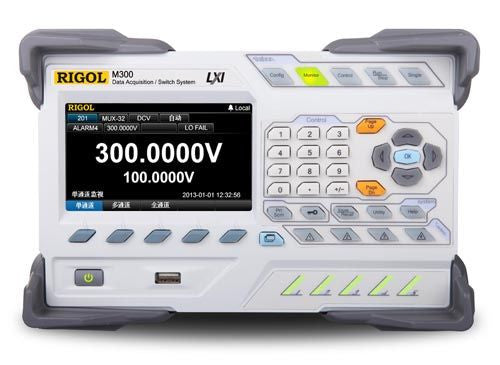

Rigol M302 Mainframe data logger (including 6.5 DMM and MUX20)

M300 Series Data Acquisition/Switch System with modular structure, which combines precision measurement capability with flexible signal connections, can provide versatile solutions for the applications with multiple points or signals to be tested in product performance test during R&D phase as well as automatic test during production process.

Multimeter scanner consisting of:

mainframe
multimeter card 6 digits and 1/2 MC3065
MC3120 20-channel multiplexer board
M3TB20 terminal board

Description

Mainframe Specs	M302
Number of Slots	5 (DMM and MC3120 use one of these slots each)
Included Modules	MC3065 DMM and MC3120 Module
Interfaces	USB Host & Device, LAN (LXIC), GPIB, RS-232
DMM Specs	Please download M300 datasheet or User's Guide for complete Model MC3065 DMM Module specs
Switch Specs	Multiplexer				Actuator	Matrix
General	MC3120	MC3132	MC3164	MC3324	MC3416	MC3648
Number of Channels	20	32	64	20 Voltage+4 Current	16	4×8
Number of Channels	2/4 wire[1]	2/4 wire[1]	1 wire[2]	2/4 wire[3]	SPDT	2 wire
Connect to DMM Module?	Yes	Yes	Yes	Yes	No	No
Scanning Speed[4]	60Ch/s	60Ch/s	60Ch/s	60Ch/s	--	--
Open/Close Speed	200Ch/s	200Ch/s	200Ch/s	200Ch/s	200Ch/s	200Ch/s
Maximum Input
Voltage (DC, AC rms)	300Vrms	300Vrms	300Vrms	300Vrms	300Vrms	300Vrms
Current (DC, AC rms)	1Arms	1Arms	1Arms	1Arms	2Arms	1Arms
Power (W, VA)	50VA	50VA	50VA	50VA	60VA	50VA
Isolation (ch-ch, ch-earth) (DC, AC rms)	300Vrms	300Vrms	300Vrms	300Vrms	300Vrms	300Vrms

Features

Features

Up to 320 switch channels per mainframe, save on cost of ownership
Can be run without PC
USB logging
Interval scanning with storage of up to 100,000 time-stamped readings
8 kinds of cards supported
6½ digits DMM can be enabled/disabled in any of slots
Standard SCPI commands
Math statistics: AVG, MAX, MIN, SDEV
4.3' TFT LCD
Powerful PC software
Full Interfaces supported: USB Device,USB Host, GPIB, LAN(LXI-Core 2011 Device), RS232

Multimeter scanner consisting of:
