GW Instek  |  SKU: 01PP232330GS

GW Instek GPP-2323

The GPP series consists of 6 models of DC programmable power supplies with a max output power of 385W.

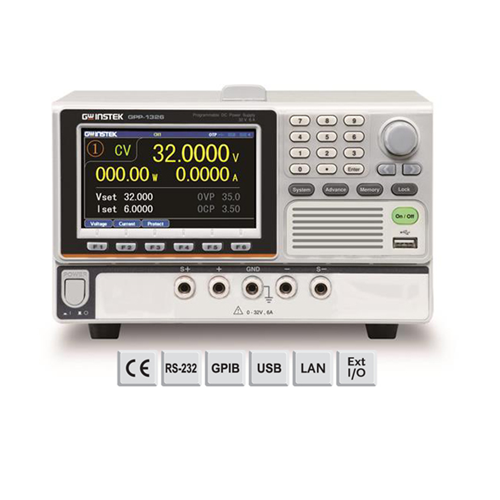

  • GPP-1326 (0 ~ 32 V / 0 ~ 6 A) single output
  • GPP-2323 (CH1: 0 ~ 32 V / 0 ~ 3 A, CH2: 0 ~ 32 V / 0 ~ 3 A) 2 output channels
  • GPP-3323 (CH1: 0 ~ 32 V / 0 ~ 3 A, CH2: 0 ~ 32 V / 0 ~ 3A, CH3: 1.8 V, 2.5 V, 3.3 V, 5.0 V / 5 A) 3 output channels
  • GPP-4323 (CH1: 0 ~ 32 V / 0 ~ 3 A, CH2: 0 ~ 32 V / 0 ~ 3 A, CH3 : 0 ~ 5 V / 0 ~ 1 A, CH4: 0 ~ 15 V / 0 ~ 1 A) 4 output channels
  • GPP-3060 (CH1: 0 ~ 30 V / 0 ~ 6 A, CH2: 0 ~ 30 V / 0 ~ 6 A, CH3 : 1.8V, 2.5V, 3.3V, 5.0V /5A) 3 output channels
  • GPP-6030 (CH1: 0 ~60 V / 0 ~ 3 A, CH2: 0 ~ 60 V / 0 ~ 3 A, CH3 : 1.8V, 2.5V, 3.3V, 5.0V /5A) 3 output channels

This series not only provides high program resolution (1 mV / 0.1 mA) and 'excellent read resolution (0.1 mV / 0.1 mA), but also has optimal ripple-noise characteristics and transient recovery capability.
An independent output on-off switch is provided for each channel.

Description
model
GPP-2323
SKU 01PP232330GS
number of channels 2
max current CH1 = 0-3A , CH2 = 0-3A
max voltage CH1 = 0-32V , CH2 = 0-32V
max power 96W per channel
connections between channels possibility of series and parallel connection



Features

- 4.3" TFT LCD Display
- Supports Setting Value, Measurement Value and Output Waveform Display
- Load Function (CC, CV, CR Mode)
- Setting Resolution: 1mV/0.1mA ; Read Back Resolution: 0.1mV/0.1mA
- Low Ripple Noise: less than 350u Vrms/ 2mArms
- Transient Response Time: less than 50us
- Tracking Series and Parallel Function without Additional External Wiring
- Utilizing Hardware to Realize Over Voltage Protection/Over Current Protection/Over Temperature Protection
- Delay Function/Output Monitoring Function/Output Recorder Function
- Intelligent Temperature Control Fan Effectively Reduces Noise
- Sequential Output Function and Built-in 8 Template Waveforms
- The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second
- Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
- GPP-3323 Supports A USB(Type A)Output Terminal
- Standard: RS-232, USB, Ext I/O ; Optional (Manufactured Installed Only) : LAN, GPIB+LAN
- Compatible with Commands of GPD-X303S Series
