GW Instek  |  SKU: 01PP603050GS

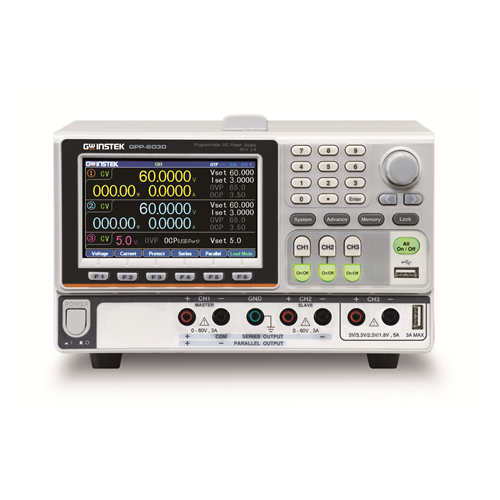

GW Instek GPP-6030LG (USB+LAN+GPIB)

GPP-3060 and GPP-6030 inherit from the GPP series the features of high output resolution (1mV/0.1mA) , readout resolution (0.1 mV/0.1 mA) in addition to the low ripple noise 1 mVrms feature.
An independent output on-off switch is provided for each channel.
For series and parallel applications of CH1 and CH2, the tracking function allows automatic switching from 'series to parallel use without additional external wiring.
Several display modes of set parameters and measured values are available.
There is a function to record the output voltage/current. The data is saved as a file (*.REC) or (*.CSV) in the internal memory, transfer to a USB flash drive is also allowed.
The unique load function of the GPP series allows CH1/CH2 to be arbitrarily set as the power supply or load function.
(CV) (DC) and (CR) modes of operation are available .
Channel 3 (CH3) incorporates a USB 3A (Type A) output terminal, which can be used for USB charging test.
Related to measurement protections, OVP/OCP/OPP/OTP protection functions are provided.
In addition, GPP-3060 and GPP-6030 also provide rear panel output with related sense . Rear or front panel output facilitates the user to use the 'stand-alone or rack-mount equipment.



Description



model
GPP-6030
SKU 01PP603050GS
number of channels 3
max current CH1 and CH2 = 0-3A, CH3 = 5A (MAX), 3A (MAX,USB port)
max voltage CH1 and CH2 = 0-60V , CH3 = 1.8/2.5/3.3/5V, +- 5%
connections between channels possibility of series and parallel connection between CH1 and CH2
interface (USB+LAN+GPIB)



Features

- 4.3 "TFT LCD Display
- Setting Resolution: 1mV/0.1mA; Read Back Resolution: 0.1mV/0.1mA
- Low Ripple Noise
- Transient Response Time: less or equal 100µS ?
- Load Function (CC, CV, CR mode)
- Tracking Series and Parallel Function without Additional External Wiring
- Utilizing Hardware to Realize Over Protection/Over Current Protection/ Over Temperature Protection
- Delay Function/Output Monitoring Function/Output Recorder Function
- Supports Setting Value, Measurement Value and Output Waveform Display
- Sequential Output Function and Built-in 8 Template Waveforms
- The Output Recorder Function Records the Output Voltage & Current Parameters with a Minimum Recording Interval of 1 Second
- Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
- GPP-3060/6030 Supports a USB (Type A)Output Terminal
- Intelligent Temperature Control Fan Effectively Reduces Noise
- Standard: RS-232, USB, LAN, Ext I/O (manufacturer installed only): GPIB
