GW Instek  |  SKU: 01SU121H00GT
10% off

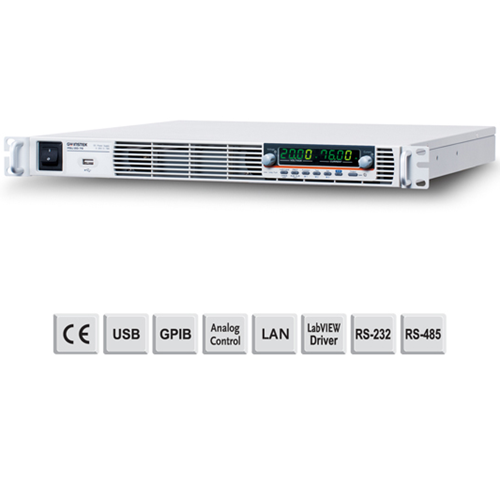

GW Instek PSU 12.5-120

📢 OFFER VALID FROM 15 APRIL 2026 to 30 JUNE 2026

The PSU series identifies programmable DC switching power supplies covering a power range up to 1560W. It consists of ten models with combination of voltage ratings from 6 V to 600 V. Using multiple parts of the same model, series and parallel connections can be made to increase the total values of current, voltage and power.

Settings for DC or CV (constant current or constant voltage) priority are allowed, and it is possible to adjust the response rates for output voltage or current according to the test requirements.
For example, controlling the response speed of voltage and current for motor testing is critical to protect the DUT from damage caused by inrush current at 'turn-on.

Description

Offer valid from 15 April 2026 to 30 June 2026

model
PSU 12.5-120
SKU 01SU121H00GT
max current 120A
max voltage 12.5V
max power 1500W

Features

PSU series features

  • Voltage Output : 6V/12.5V/20V/40V/60V/100V/150V/300V/400V/600V
  • Power Output : 1200W ~ 1560W
  • C.V/C.C Priority Mode
  • Adjustable Voltage/Current Rise and Fall Time
  • Series/Parallel Connection : Max. 2 units (Models Under 300V)/4 units of The Same Model
  • High Efficiency and High Power Density
  • 1U Height and 19"Rack Mount Size
  • Three sets of Preset Function
  • Bleeder Control Function
  • Internal Resistance Function
  • Panel Lock Function
  • Protection : OVP, OCP, OHP, UVL, AC Fail, FAN Fail
  • Standard : USB, LAN, RS-232, RS-485, Analog Control
  • Option : GPIB, Isolated Analog Interface (Voltage Control/Current Control)

Standard Accessories:

CD-ROM x 1(User Manual, Programming Manual), Output terminal cover x 1, Analog connector plug kit x 1, Output terminal M8 bolt set(6V~60V model), Input terminal cover x 1, 1U Handle(RoHS), 1U Bracket(LEFT, RoHS), 1U Bracket(RIGHT, RoHS), Power Cord(10A) provided for certain regions only

Optional Accessories:

GTL-246 USB cable, USB 2.0 A-B type cable, 4P

Manuals

PSU series specification
PSU series brochure
PSU series datasheet
