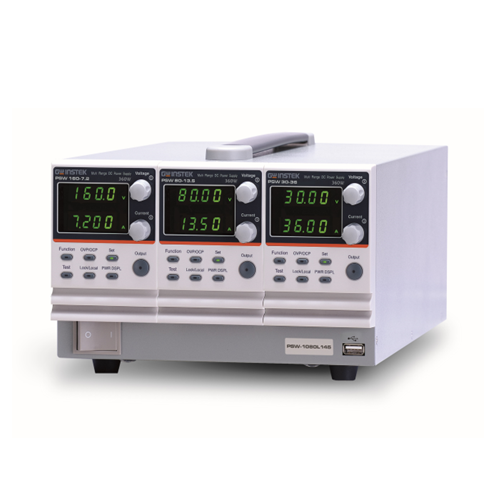

PSW-1080L112

PSW-Multi series switching power supplies feature a wide range of two- and three-channel outputs. The maximum power the series can achieve is 1080 W. There are 13 two-channel models with a power rating of 720W and 24 three-channel models with a power rating of 1080 W.
The rated voltages of low-voltage modules are 30V, 40V, 80V, 160V. The rated voltages of the high-voltage modules are 250V and 800V.
CV/CC priority selection of the PSW-Multi series is a very useful feature for DUT protection.
The switching speed adjustment of the PSW-Multi series allows users to set for the output voltage or output current a specific rise time from low to high level transition and a specific fall time from high to low level transition.

The PSW-Multi series provides for OVP and OCP . Both OVP and OCP levels can be selected, with the default level set at 110% of the rated voltage/current level of the power supply. When any of the protection levels are activated, the power supply output will be turned off to protect the DUT.
The PSW-Multi series provides USB and LAN host/device interfaces as standard, GPIB-USB adapter and RS232-USB cable as optional.
LabVIEW drivers and PC Data Logging software are supported on all available interfaces. An analog control/monitoring connector is available on the rear panel for external on/off control and external monitoring of power supply output voltage and current.

Description



model
 PSW-1080L112
SKU 01SWL11200GT
ch1 30V/36A
ch2 30V/36A
ch3 40V/27A
max power 1080W

    ACCESSORIES

    CD-ROM x1(Programming Manual, User Manual)
    Power Cord x1(Region dependent)
    GTL-123 Test Lead x 1 (for PSW 30V/40V/80V/160V models)
    GTL-240 USB Cable "L" Type x1
    PSW-004 Basic Accessories Kit x1(for PSW 30V/40V/80V/160V models)
    PSW-008 Basic Accessories Kit x1(for PSW 250V/800V models)
    PSW-009 Output terminal cover(for PSW 30V/40V/80V/160V models)
    PSW-011 Output terminal cover(for PSW 250V/800V models)
    PSW-012 High voltage output terminal(for PSW 250V/800V models)

    OPTIONAL ACCESSORIES
    PSW-001 Accessory Kit
    PSW-002 Simple IDC Tool
    PSW-003 Contact Removal Tool
    PSW-005 Cable for 2 Units of PSW-Series in series mode connection(for PSW 30V/40V/80V/160V models)
    PSW-006 Cable for 2 Units of PSW-Series in parallel mode connection
    PSW-007 Cable for 3 Units of PSW-Series in parallel mode connection
    PSW-010 Large filter (for PSW 720W/1080W models)
    GUG-001 GPIB to USB Adaptor
    GRA-410-J Rack Mount Kit(JIS)
    GRA-410-E Rack Mount Kit(KIA)
    GET-001 Extended Terminal with max. 30A(for PSW 30V/40V/80V/160V models)
    GET-002 Extended Terminal with max. 10A(for PSW 250V/800V models)
    GET-005 Extended European Terminal with max. 20A(for PSW 30V/40V/80V/160V models)
    GTL-130 Test Lea: 2x red, 2x black(for PSW 250V/800V models)
    GTL-248 GPIB Cable, 2000mm
    GTL-250 GPIB Cable, 600mm
    GUR-001A USB TO RS-232 Cable (M3), 3000mm
    GUR-001B USB TO RS-232 Cable (#4-40 UNC), 3000mm



    Features
    • Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W
    • Multi-range Voltage & Current Combinations in One Power Supply
    • CV/CC Priority; Particularly Suitable for the Battery and LED Industry
    • Adjustable Slew Rate
    • Series Operation (2 units in Series) for (30V/40V/80V/160V)
    • Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)
    • High Efficiency and High Power Density
    • 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W
    • Standard Interface: LAN,USB,Analog Control Interface
    • Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
    • LabView Driver



    Manuals

    PSW-Series_brochure

    PSW-Series_programming
