KEWELL  |  SKU: C3000NG-7K5-0750-0060

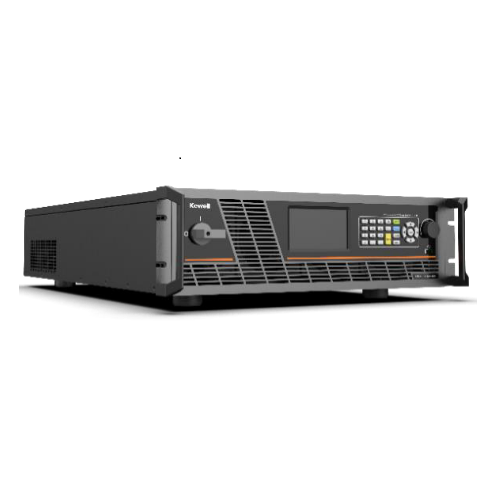

Kewell C3000 Normal config. High Performance DC Power Supply (High Voltage Version)

Tax included Shipping calculated at checkout.

The C3000 Series is a high-precision programmable DC power supply boasting wide voltage range, high dynamic performance,
and ultra-high power density. Featuring auto-range output and flexible voltage & current combinations, the C3000 Series is widely
used in industries such as PV, EV, and aviation.

Voltage
Current
Power

Description

Normal configuration

Normal  Pro
features Fundamental,
Cost-effective		 Fully-featured,
Multi-scenario
DC power supply   YES   YES
IV simulation    -   YES


Features

Series Features:

  • High power density design: 30kW in 3U
  • Power output range: 0 ~ 30kW
  • Current output range: 0 ~ 180A
  • Voltage output range: 0 ~ 2000V

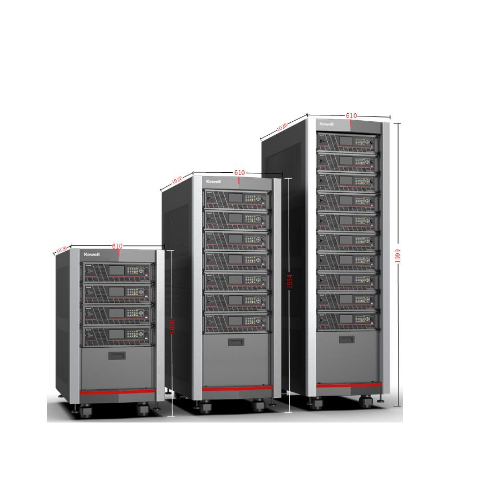

  • Parallel connection: up to 20 units
  • AC voltage input: 342VAC ~ 528VAC
  • PV simulation: Static MPPT, Multi-IV, EN50530, etc.
  • RS485/CAN/LAN/USB communication interface
  • Protections: OVP, OCP, OTP, OPP, etc

Manuals

Kewell-C3000NG_High_Voltage_Datasheet
