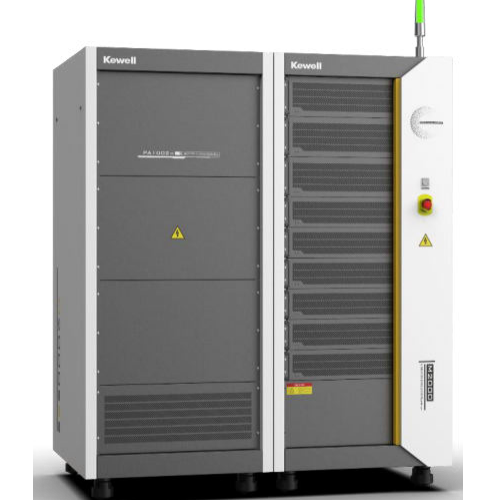

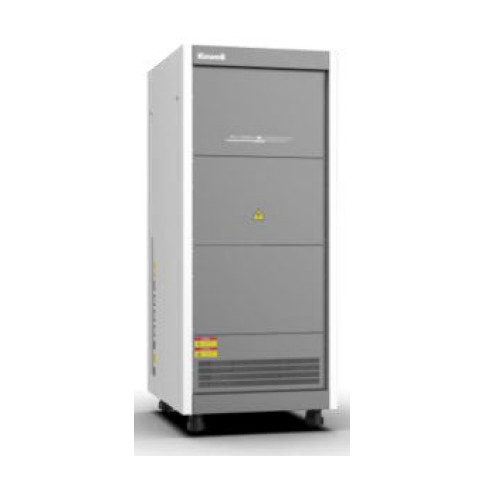

Kewell M2000-MS E-Motor Emulator

The M2000-MS Series E-Motor Emulator (EME) is a new power electronic product integrating static motor + load simulation. Based on the thirdgeneration wide bandgap SiC power semiconductor devices, the series is highly modularized and standardized. It enjoys widespread application in the development and testing of drive motor controllers and general-purpose inverters.
M2000-MS Series E-Motor Emulator is an integrated stationary motor & load simulator, containing dynamic mathematical models for various types of motors (permanent magnet synchronous motors (PMSM), asynchronous motors (ASM), etc.), as well as load models.


Power
Motor Voltage
Rated Current

Description
Series Product Model
Power (kVA) 100 - 500
Motor Voltage  (Vrms) (L-L) 900
Rated Current (Arms) 167 - 835
Power Supply Parameters
Grid Phase 3φ3W＋PE
Grid Voltage 400V±10%
Grid Frequency 50Hz±5Hz
Power Factor ≥0.99
iTHD ≤3% @full load
EME Parameters
Phases of Simulated Motor 3
Motor Type PMSM/ASM
Back EMF 900Vrms (L-L) @load/ 850Vrms (L-L) @source
Rated Speed 120000rpm/pole pair
Current Frequency 0Hz ~ 2kHz (considering motor characteristics, rated current falls as current frequency increases)
*The relationship between current frequency and rated current:
1kHz@100% rated current, 1.5kHz@80% rated current, 2kHz@70% rated current
Model Iteration Rate  2µs
Control Mode  Speed control, torque control
Motor Steering  Clockwise/Counter-clockwise
Motor Torque  Positive/Negative
Stator Resistance  0Ohm~5Ohm
Motor Leakage Inductance  50uH~2650uH
Number of Pole Pairs  1~20
Temperature Sensor  4 signals/channel, NTC or PTC
Position Sensor  Resolver /Encoder/ Hall
Resolver Excitation  3kHz ~ 20kHz
Fault Simulation Short-circuit/disconnection/locked-rotor/sensor fault/communication fault, etc.
Equivalent Switching Frequency Simulated ≥200kHz
Max. Current Response Rate ≥1500A/ms
Communication Interface CAN/LAN/485



Features

Series Features

-Motor Simulation
-Non-linear Simulation (LUT)
-Temperature Simulation
-Position Signal Simulation
-Fault Injection
-Vehicle Model
