Rigol  |  SKU: DM3058E

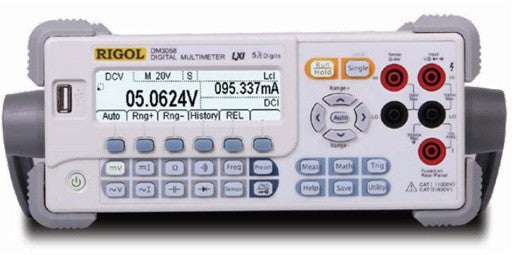

Rigol DM3058E 5 and 1/2 digit multimeter

Multifunction digital multimeter. Resolution 5½ digits, DC voltage accuracy (1 year) 0.015%, DC voltage range 200 mV ~ 1000 V, max sampling rate 120Sa/s.

Description
Measurement Function
Range
Frequency Range/Test Current
Accuracy: 1 Year ± (%of reading +%of range)
DC Voltage
200 mV - 1000 V

0.015 + 0.003
DC Current
200 uA - 10 A

0.055+0.005
AC Voltage (RMS)
200 mV - 750 V
20 Hz - 100 kHz
0.20 + 0.05
AC Current (RMS)
20 mA - 10 A
20 Hz - 10 kHz
0.30+0.10
Resistance(2-wire and 4-wire)
200 Ω - 100 MΩ

0.020 + 0.003
Capacitance
2 nF - 10000 uF

1 + 0.5
Diode
2.4V
1 mA
0.05 + 0.01
Continuity
2 kΩ
1 mA
0.05 + 0.01
Frequency and Period
200 mV - 750 V
20 Hz - 1 MHz
0.01+0.003



Features

Main Features

  • Real 5½ digits readings resolution
  • Up to 123 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • Quickly Save or Recall the 10 groups of Preset Configuration
  • Preset 10 groups of Standard Sensor Configuration, built-in cold terminal compensation for thermocouple
  • Clone the instrument configurations into other DM3058/DM3058E via USB storage device
  • The first 5½ digit digital multimeter passing LXI Criterion in industry, which can achieve system integration easily
  • With easy, convenient and flexible any sensor measurement control software: UltraSensor
  • Standard configuration interface: USB Device, USB Host, LAN (only for DM3058), RS-232, GPIB (only for DM3058)
  • Support remote control via commands and compatible with commands of main stream multimeters
