Rigol  |  SKU: DM858

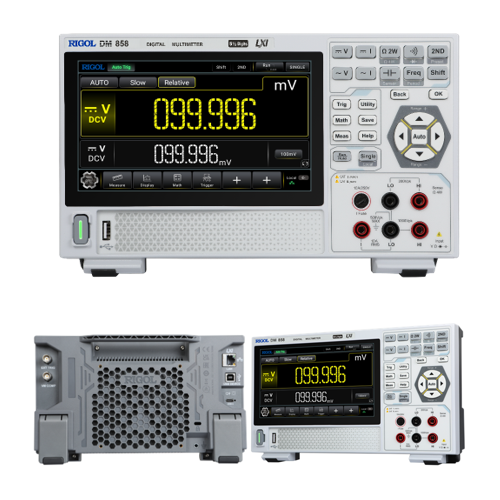

Rigol DM858 5 and 1/2 digit multimeter

The DM858 series benchtop digital multimeter is a highly convenient solution for the user. It is equipped with 5.5-digit resolution , a maximum reading of 125 readings per second, 500000 memory point data logging, DCV accuracy 0.03% (in 'use up to 1 year). It provides 11 measurement functions for input signals, 5 mathematical operations, and 3 types of graphical displays, enabling it to satisfy most tests and experiments requiring a multimeter. The 7'' touchscreen allows clear and remote viewing of measurement results. The instrument has USB , LAN (standard) interfaces and Web Control function to control the instrument directly from remote. It is equipped with a Type-C interface for power charging, has a compact size and supports attachment to a bracket, optimizing the remaining space available to the 'user.

Description
model DM858 model DM858E
DCV Accuracy (1 year)
0.030%
 0.060%
Reading Rate
125 readings/s
 80 readings/s
No. of Points in Data
Logging Memory
500000
 20000
Max. Current Measurement
Range
10 A
 3A
Max. Capacitance
Measurement Range
10 mF
 1 mF

Features

Series characteristics:

- Max. reading rate: 125 readings/s
- Up to 500,000 points logging memory to record and analyze more data
- 5½-digit reading resolution
- True-RMS AC Voltage and AC Current measuring
- Built-in 10 groups of data storage and 10 groups of setup storage
- Strong Math functions, supporting various application protocols
- 7'' color touch screen, displaying dual-measurement results concurrently
- Type-C interface for power charge; compact in size, freeing up your bench space
- Standard USB and LAN interfaces, supporting Web Control

Manuals

DM858_QuickGuide_EN

DM858_DataSheet_EN

DM858_ProgrammingGuide_EN

DM858_UserGuide_EN
