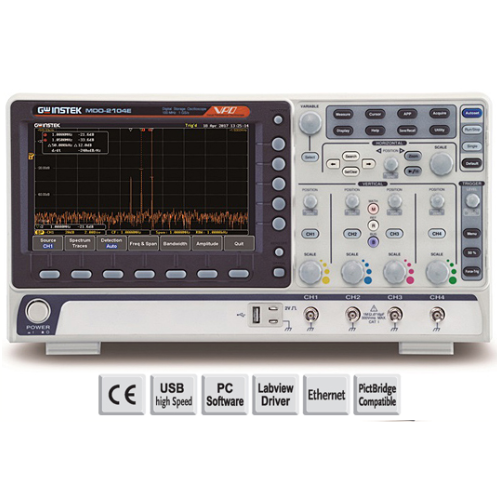

GW-Instek MDO-2204EG 200MHz Digital oscilloscope. Spectrum analyzer. 25MHz AWG. 4 CH

The MDO-2000E series presents a multifunctional mixed-domain oscilloscope. The series includes two combinations of functions: the MDO-2000EG and MDO-2000EX. The MDO-2000EG models have a built-in spectrum analyzer and a dual-channel 25MHz arbitrary waveform generator. In contrast, the MDO-2000EX models have a built-in spectrum analyzer, an arbitrary waveform generator, a 5000-count DMM, and a 5V/1A power supply. The latter combination is the first of its kind in the T&M industry.

Description
model MDO-2204EG
SKU 01MD224EG0GT
Bandwidth
 200MHz
Channels 4
Record lenght 10M / ch
Real time sampling rate Max 1 GSa/s
Builtin Spectrum Analyzer , Dual Channel 25MHz Arbitrary Waveform Generator

Features

MDO-2000E series features

  • 200/100/70MHz Bandwidth Selections: 2 or 4 Channels
  • Real Time Sample Rate Per Channel: 1GSa/s (2 Channel Models); Maximum Real Time Sample Rate: 1 GSa/s (4 Channel Models)
  • MDO-2000EG Equips with a Spectrum Analyzer and a Dual Channel 25MHz AWG
  • MDO-2000EX Equips with a Spectrum Analyzer ; a Dual Channel 25MHz AWG; DMM and Power Supply
  • Per Channel 10M Memory Depth and VPO Waveform Display Technology
  • Waveform Update Rate up to 120,000 wfm/s
  • 8 " WVGA TFT LCD
  • Free Frequency Response Analyzer Software
  • Maximum 1M FFT Provides Higher Frequency Domain Resolution Measurements
  • High Pass, Low Pass and Band Pass Filter Functions
  • 29,000 Segmented Memory Sections and Waveform Search Functions
  • I²C/SPI/UART/CAN/LIN Serial Bus Trigger and Decoding Functions
  • Data Log Function is Able to Track Signal Changes up to 1000 Hours
  • Mask Test Function
  • Network Storage Function

Manuals

MDO-2000E_brochure

MDO-2000E_specs
