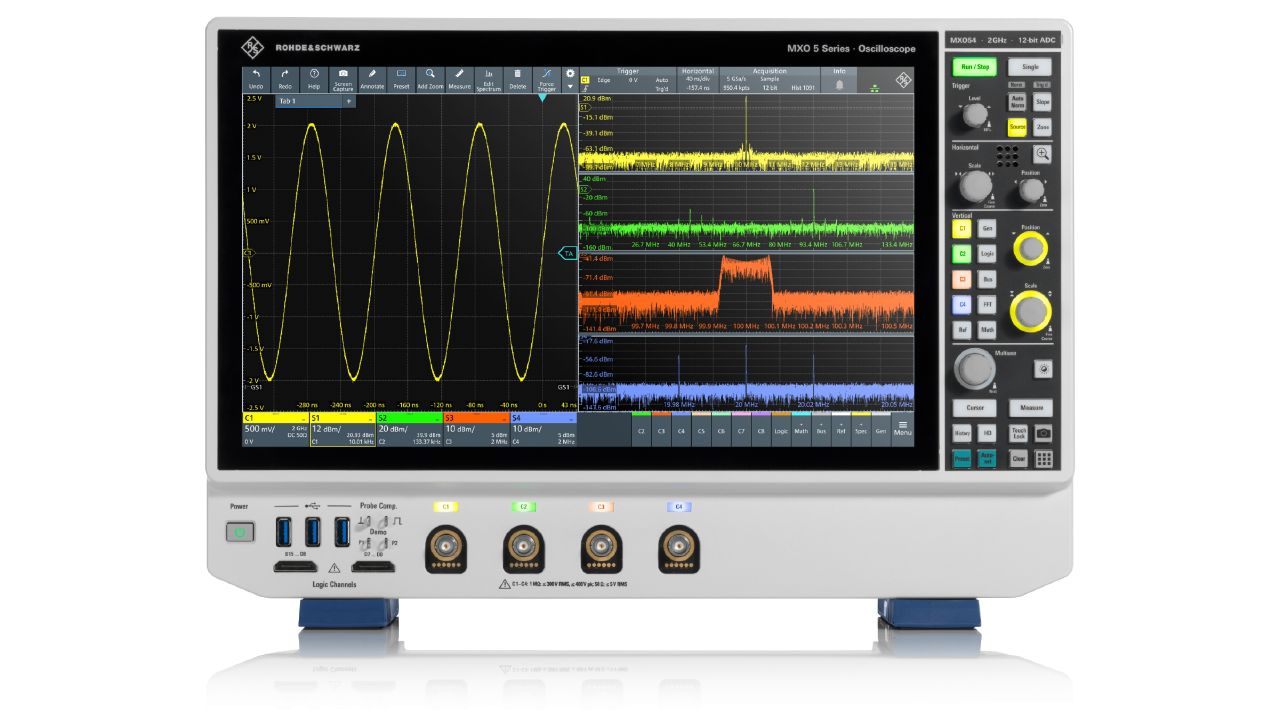

R&S® MXO54-PRO 500 MHz Oscilloscope, 4 Channels
R&S® MXO54-PRO 500 MHz Oscilloscope, 4 Channels is backordered and will ship as soon as it is back in stock.
R&S® MXO54-PRO 500 MHz Oscilloscope, 4 Channels
Description
Description
The Rohde & Schwarz MXO 54 oscilloscope is a 12-bit oscilloscope with a bandwidth of 350 MHz, 4 analog and 16 digital channels ( can be activated with option B1 , optional logic probes), 15.6" capacitive Full HD touchscreen , with a sampling rate of up to 5 Gsa/s and a standard memory depth of 500 Megapoints. The MXO 5 series thus comes with innovative technology that guarantees in 'analysis fast and accurate results. 4- or 8-channel oscilloscopes are available in the series. The extraordinary screen and minimal noise during operation maximize its performance and minimize power consumption.
The MXO 54 350 MHz model represents the basic version of the MXO5 series.
promo valid until September 30, 2025
Package includes :
MXO 54: low-speed serial bus (I 2 C/SPI/QuadSPI/UART/RS-232/RS-422/RS-485), automotive protocols (CAN/CAN FD/CAN XL/LIN), automotive Ethernet bus (10BASE-T1S, 100BASE-T1), power analysis, frequency response analysis, low-speed MIPI protocols, arbitrary generator
----------------------------------------------------------------------------------------
MXO 5 series 4 channel oscilloscope pro package Contains serialized product+options:
MXO 5 series oscilloscope 4 channels 1802.1008K04 consisting of: -
MXO 5 series oscilloscope 4 channel -
MXO5-B245 500 MHZ OPTION -
MXO5-B6 ARB GENERATOR -
MXO5-K510 LOW SPEED SERIAL BUSES -
MXO5-K520 AUTOMOTIVE PROTOCOLS -
MXO5-K530 AEROSPACE PROTOCOLS -
MXO5-K31 POWER ANALYSIS -
MXO5-K36 FREQ. RESPONSE ANALYSIS -
MXO5-K550 MIPI LOW SPEED PROTOCOLS -
MXO5-K560 AUTOMOTIVE ETHERNET BUSES
