Rohde & Schwarz  |  SKU: 1802.1008P83

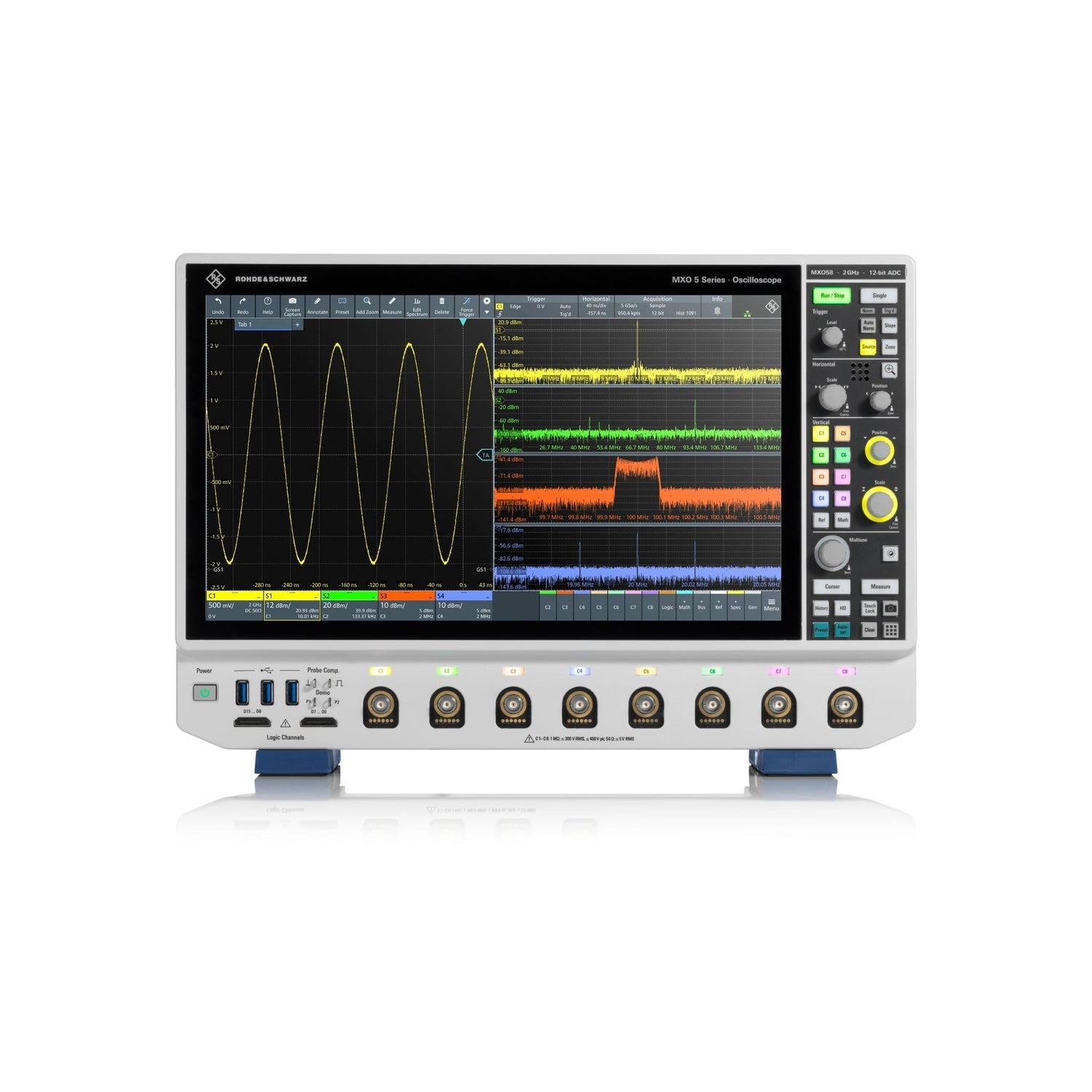

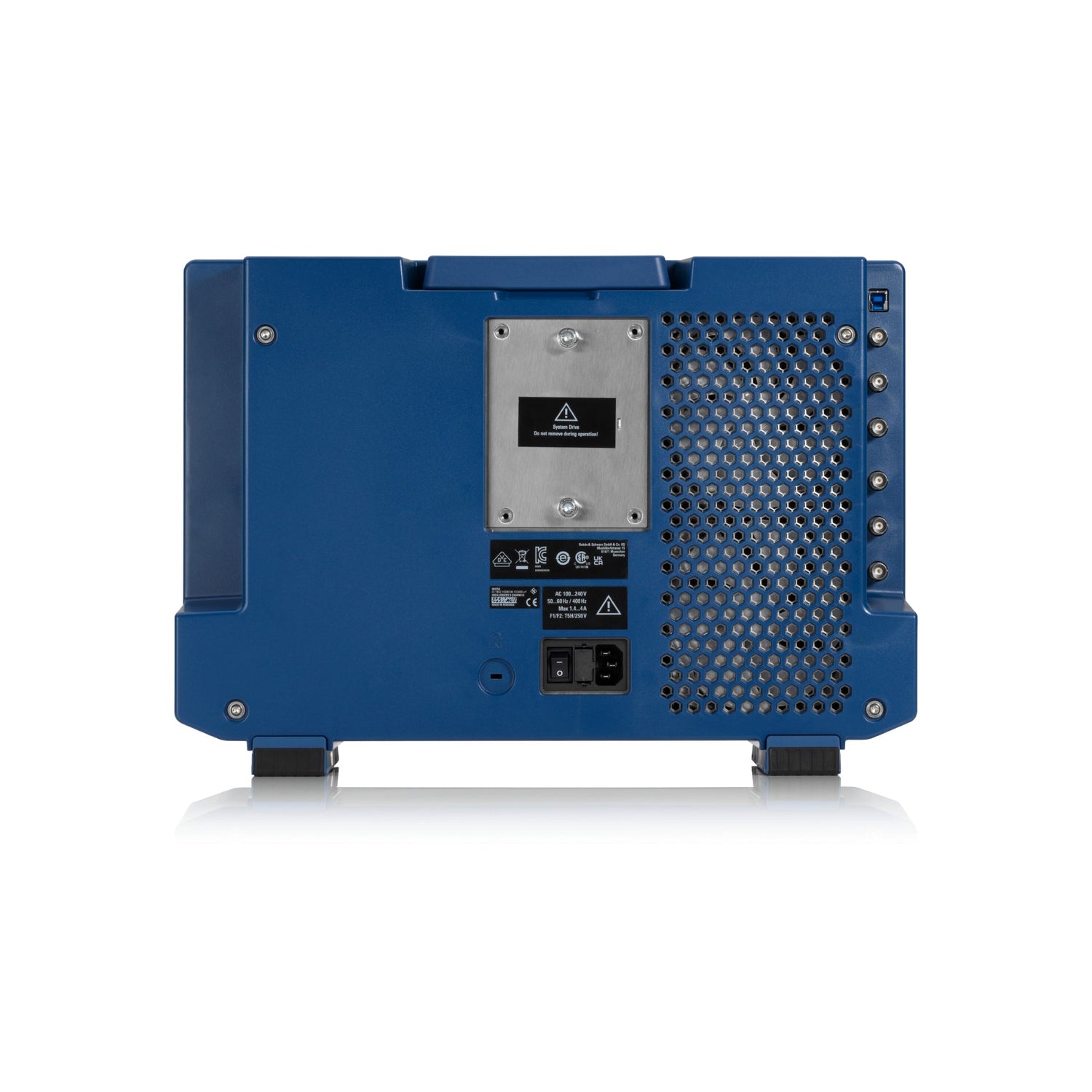

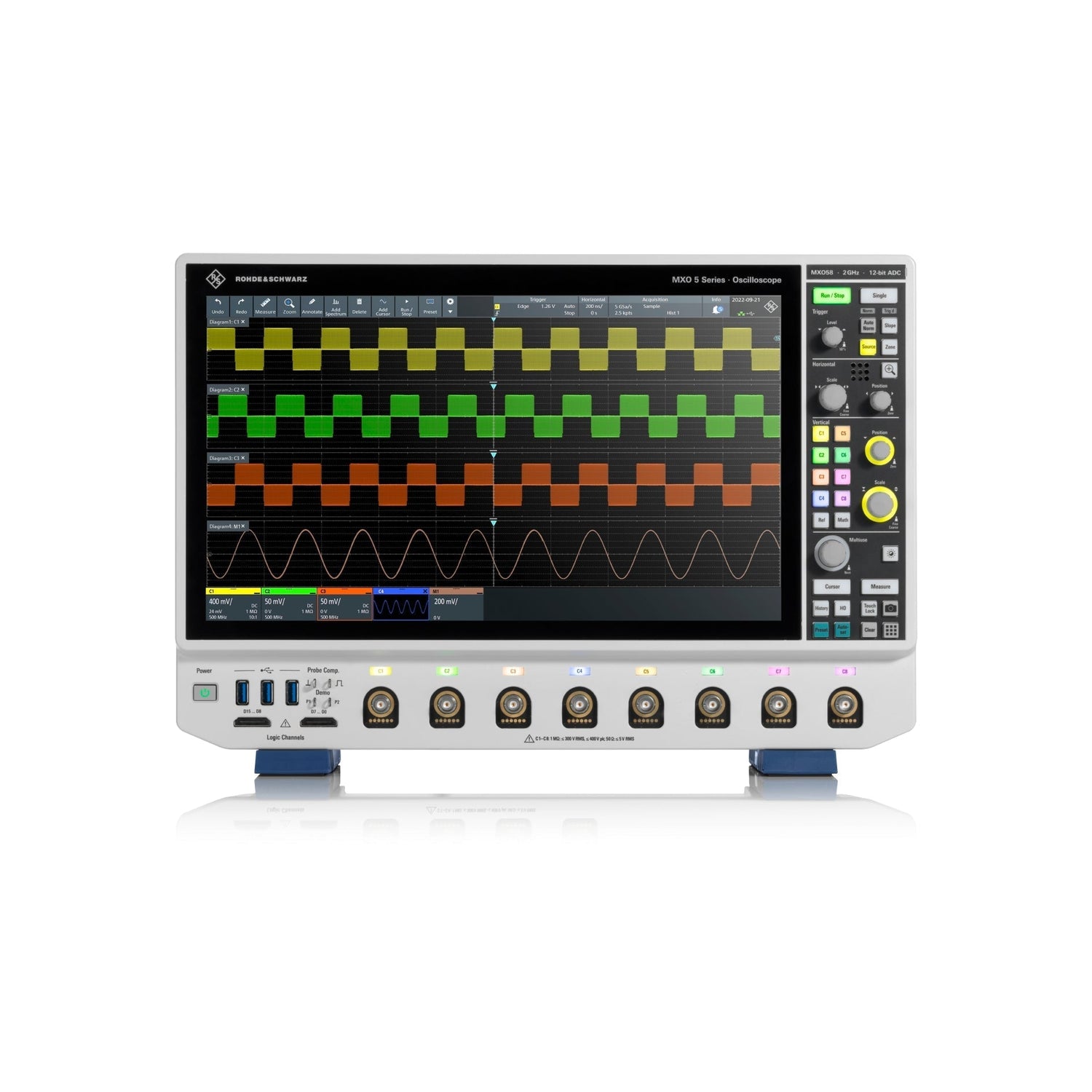

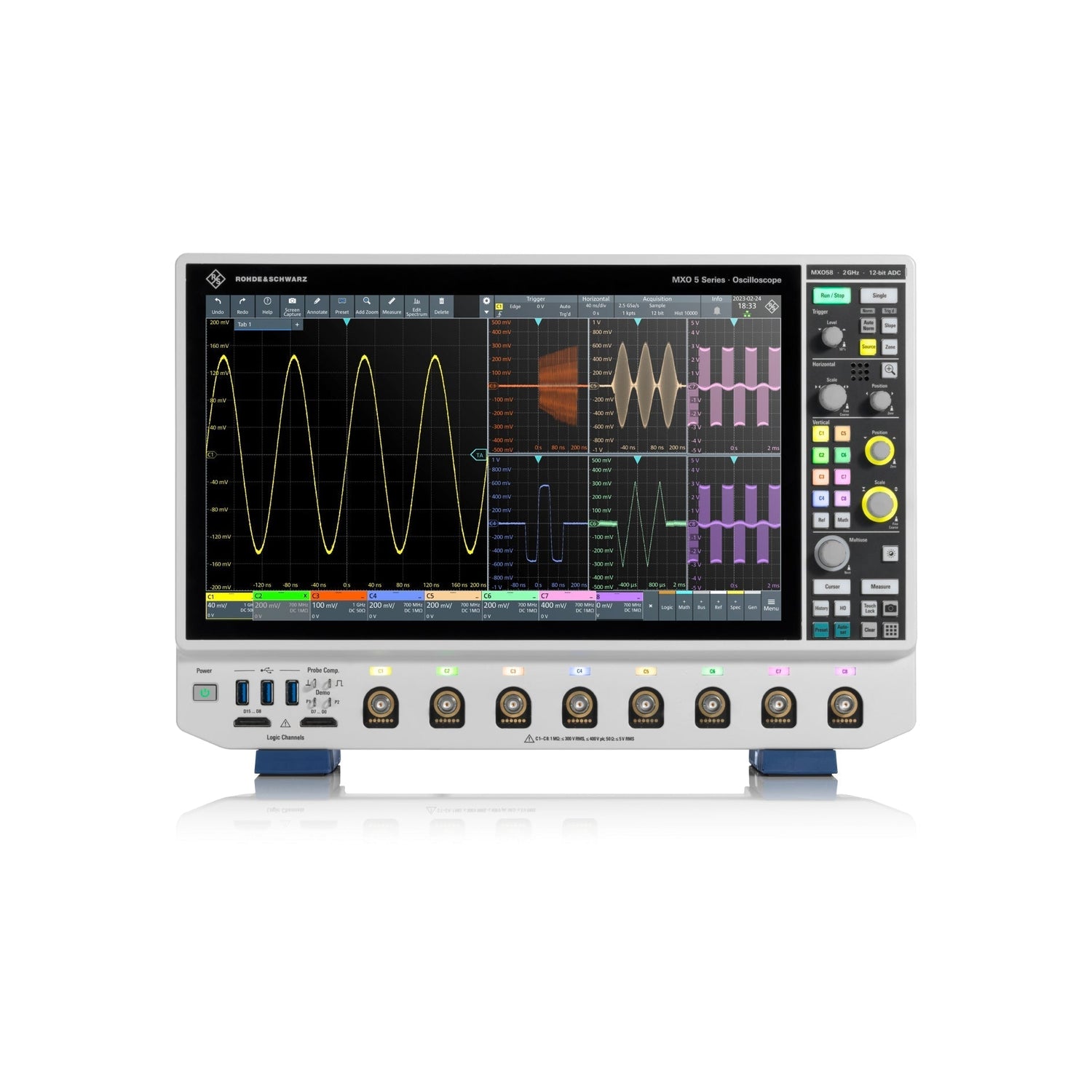

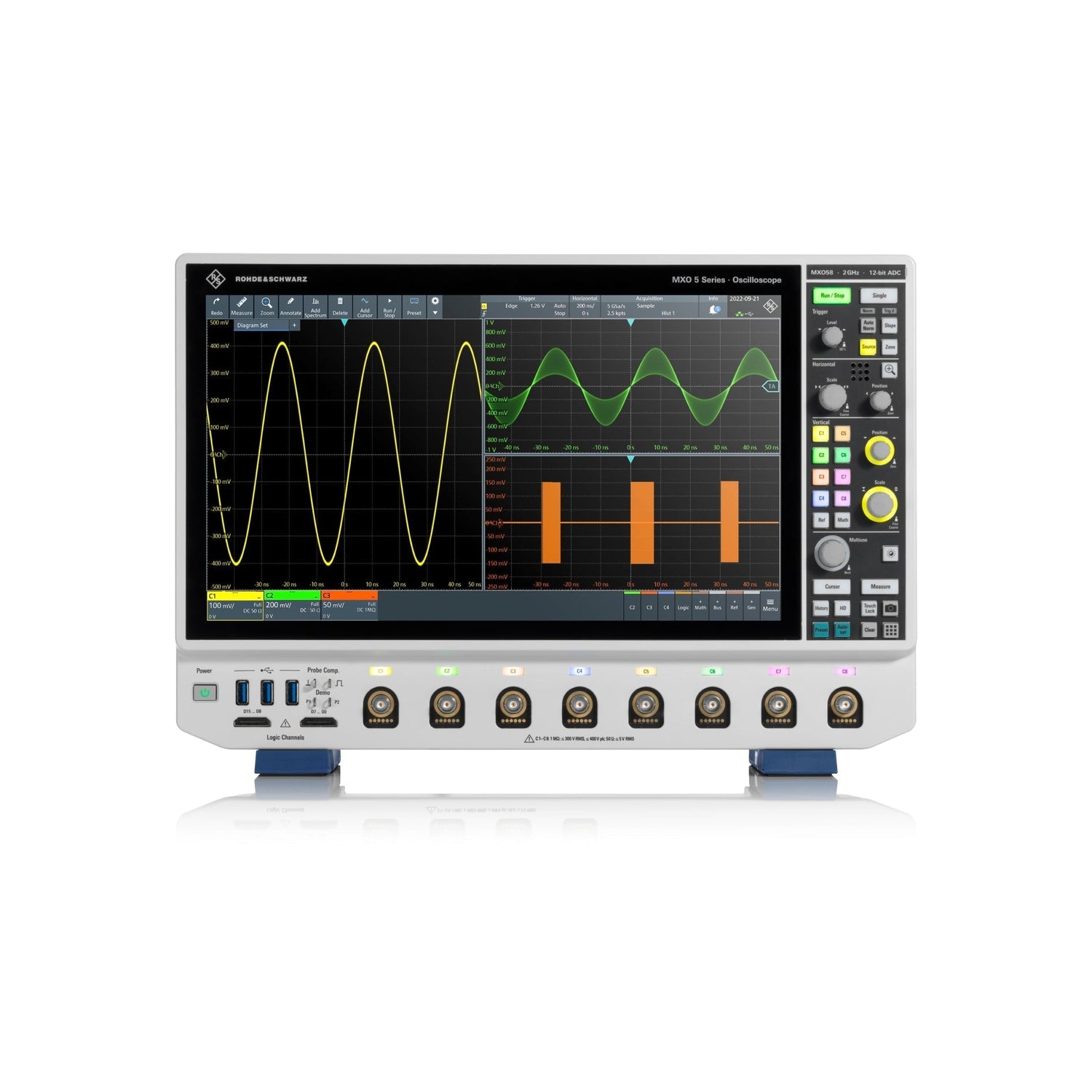

R&S® MXO58 350MHz Oscilloscope, 8 Channels

Description

The Rohde & Schwarz MXO 58 oscilloscope complete with the MX05-B283 upgrade is a 12-bit oscilloscope with 350 MHz bandwidth, 8 analog channels and 16 digital channels ( which can be activated with option B1 , optional logic probes), 15.6" capacitive Full HD touchscreen , with sampling rate up to 2.5 Gsa/s and a standard memory depth of 500 Megapoints. The MXO 5 series thus comes with innovative technology that guarantees in 'analysis fast and accurate results. 4- or 8-channel oscilloscopes are available in the series. The extraordinary screen and minimal noise during operation maximize its performance and minimize power consumption.

The MXO 58 100 MHz model represents the basic version of the MXO5 8-channel series.

R&S®MXO 54 basic vers. 4 ch ≥ 350 MHz
R&S®MXO 54 with -B245 option 4 ch ≥ 500 MHz
R&S®MXO 54 with -B2410 option 4 ch ≥ 1 GHz
R&S®MXO 54 with -B2420 option 4 ch ≥ 2 GHz
R&S®MXO 58 basic vers. 8 ch ≥ 100 MHz
R&S®MXO 58 with -B282 option 8 ch ≥ 200 MHz
R&S®MXO 58 with -B283 option 8 ch ≥ 350 MHz
R&S®MXO 58 with -B285 option 8 ch ≥ 500 MHz
R&S®MXO 58 with -B2810 option 8 ch ≥ 1GHz
R&S®MXO 58 with -B2820 option 8 ch ≥ 2GHz


Key Facts:

  • Bandwidth: 4 channel: 350 MHz - 2 GHz | 8 channel: 100 MHz - 2 GHz
  • World's fastest oscilloscope with an update rate > 4.5 million waveforms per second
  • Industry-leading system architecture: 18-bit vertical resolution/12-bit ADC
  • Deepest in class standard memory: 500 Mpoints
  • Industry-leading spectrum simultaneous acquisition rate of 45,000 FFT/s and up to 4 spectra

    Accessories included:

    • 700 MHz passive probe (10:1) RT-ZP11 per channel
    • 1 Accessory bag
    • 1 Quick Start Guide
    • 1 Power cable

        R&S® MXO5 350 MHz Oscilloscope, 4 channels
