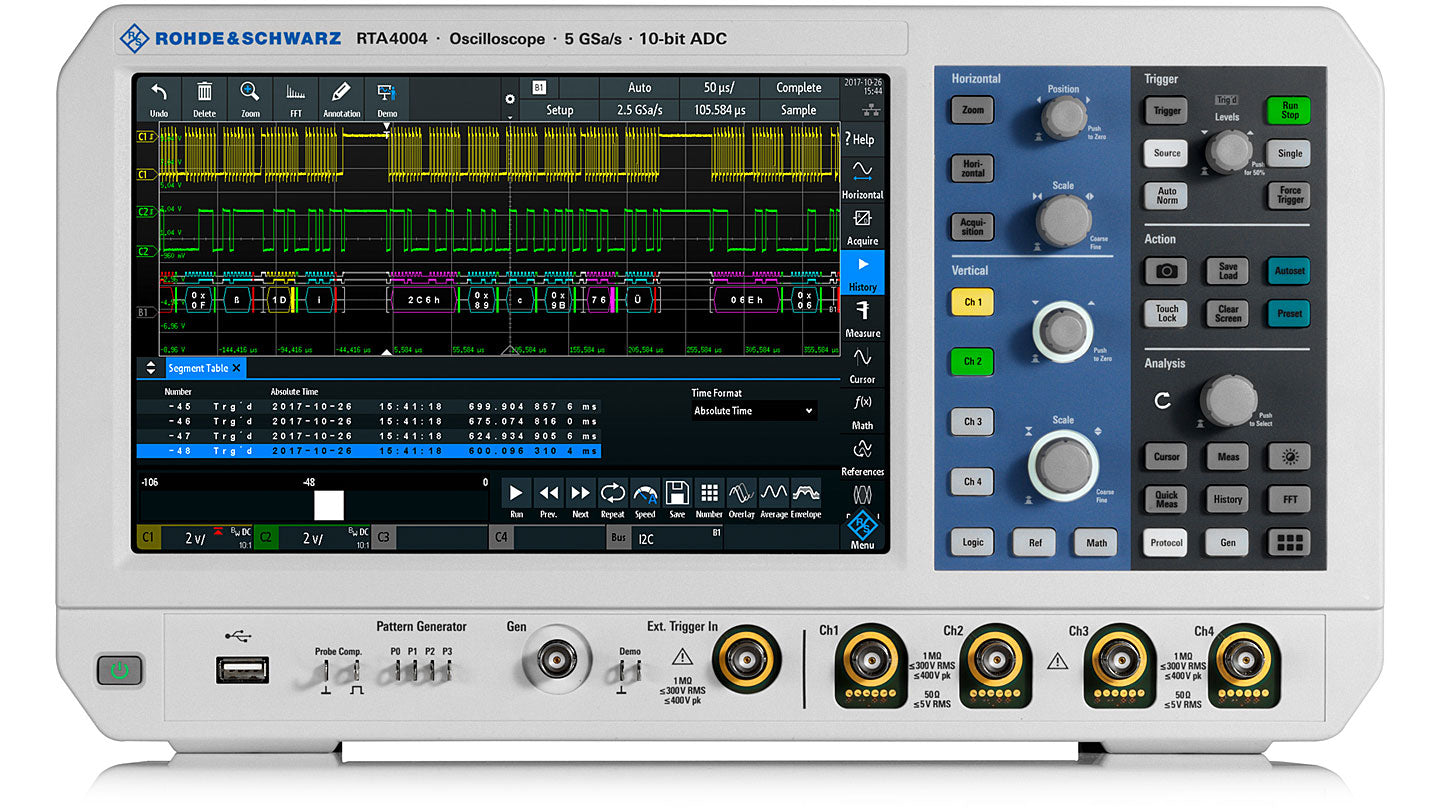

R&S® RTA-BNDL Oscilloscope - 1GHz, 4 Channels

4-in-1 Portable Oscilloscope

With ultra-deep and responsive signal integrity and memory, the R&S®RTA4004 takes the power of 10 to a new level. A 10-bit ADC designed by Rohde & Schwarz combined with low noise, memory depth, and time base accuracy delivers crisp waveforms, more accurate measurements, and confidence when facing unexpected measurement challenges.

Package includes :

RTA4004 Oscilloscope 4 channel 200 MHz
RTA-B2410 1 GHz Bandwidth option
RTA-PK1 Application Bundle, containing:
- RTA-B6 ARB GENERATOR,
- RTA-K1 I2C/SPI Trigger & Decode,
- RTA-K2 UART/RS232 Trigger & Decode,
- RTA-K3 CAN/LIN Trigger & Decode,
- RTA-K5 I2S Trigger & Decode,
- RTA-K6 MIL-1553 T&D,
- RTA-K7 ARINC 429 T&D,
- RTA-K31 Power Analysis,
- RTA-K36 Bode Plot Analysis,
- RTA-K37 SPECTRUM AN./SPEC.

Features

• Display: touchscreen WXGA up to 10.1"
• Sampling rate up to 5 Gsample/s
• Memory depth: up to 200 Msample
• ADC resolution: 10-bit
• Channels: 4 analog/16 digital (MSO) optional

Datasheet PDF
