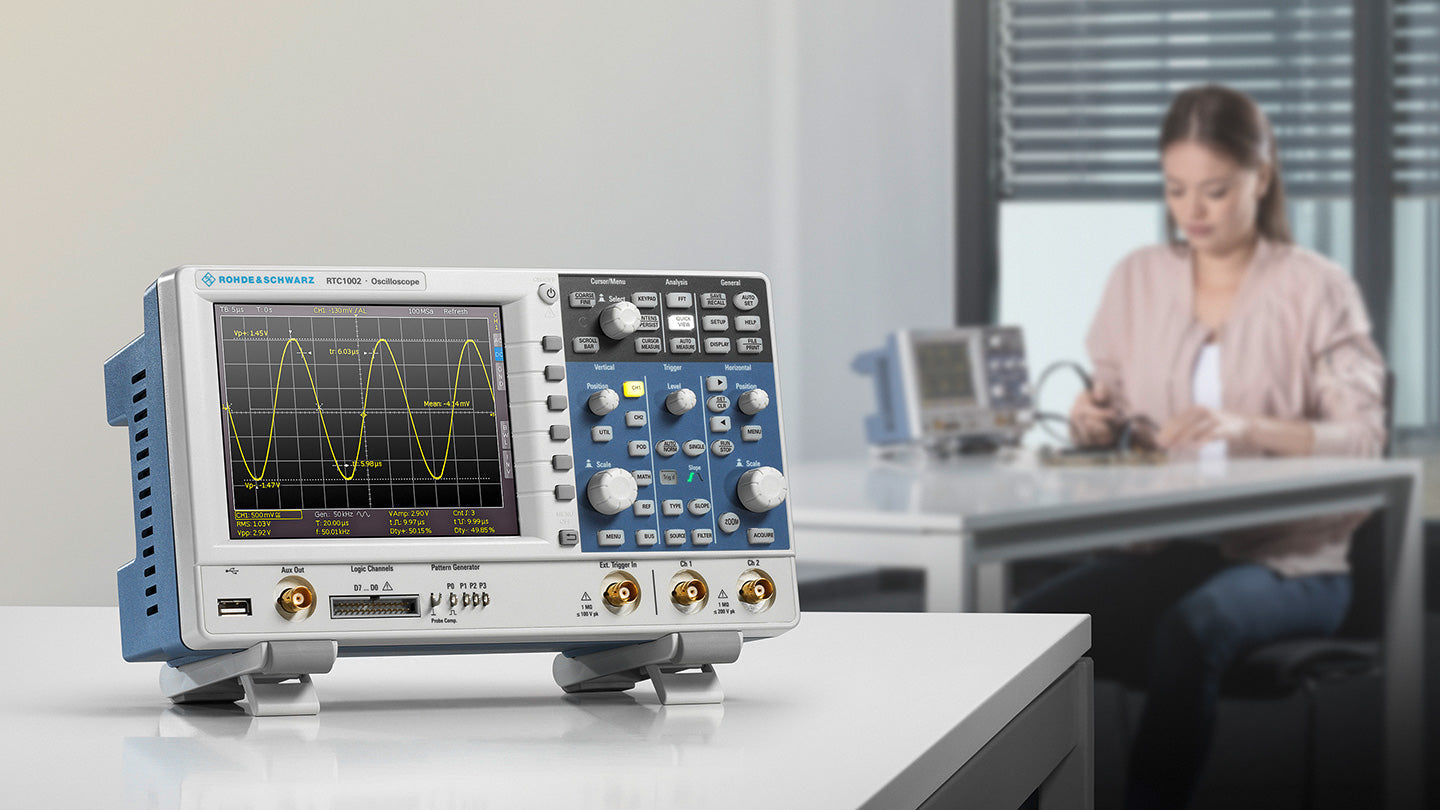

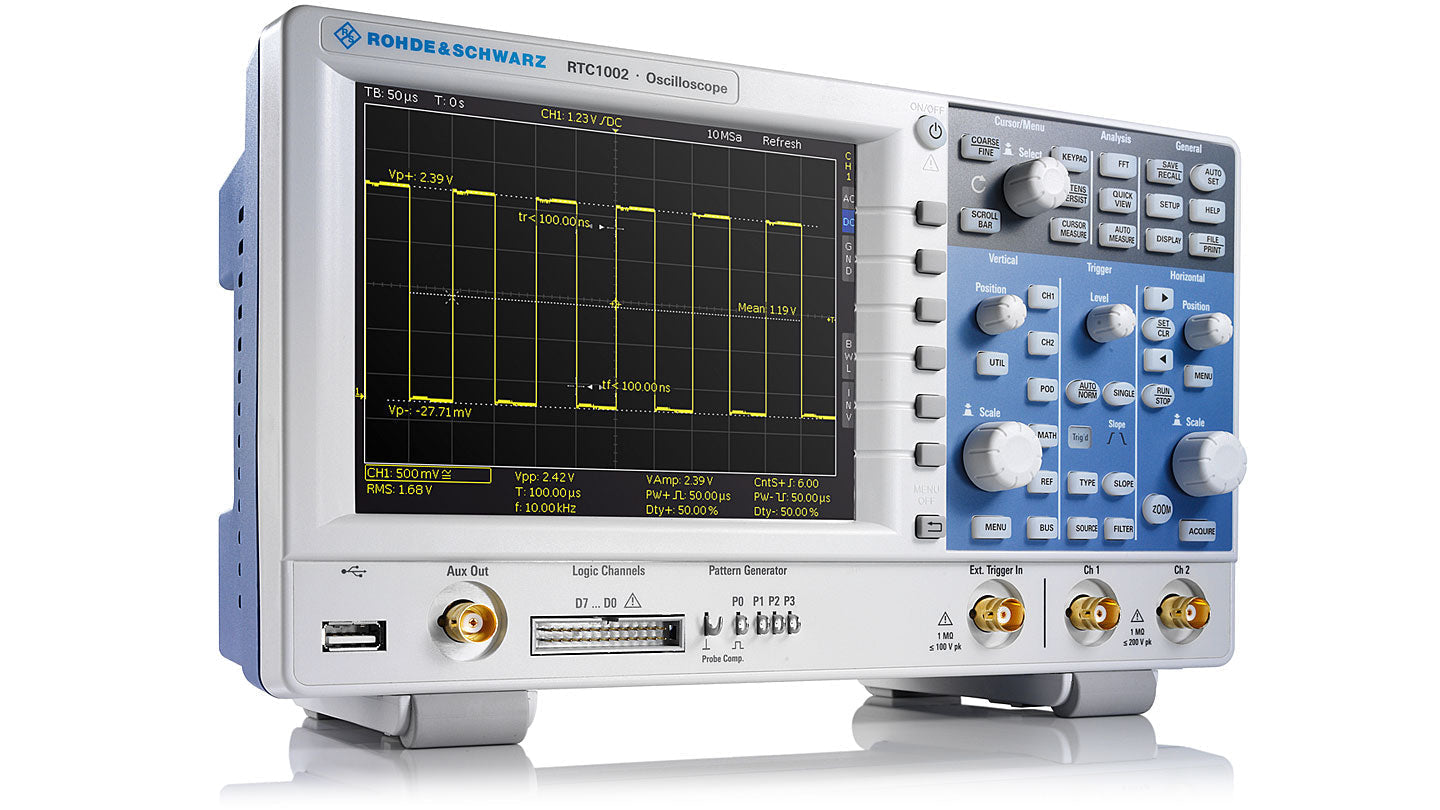

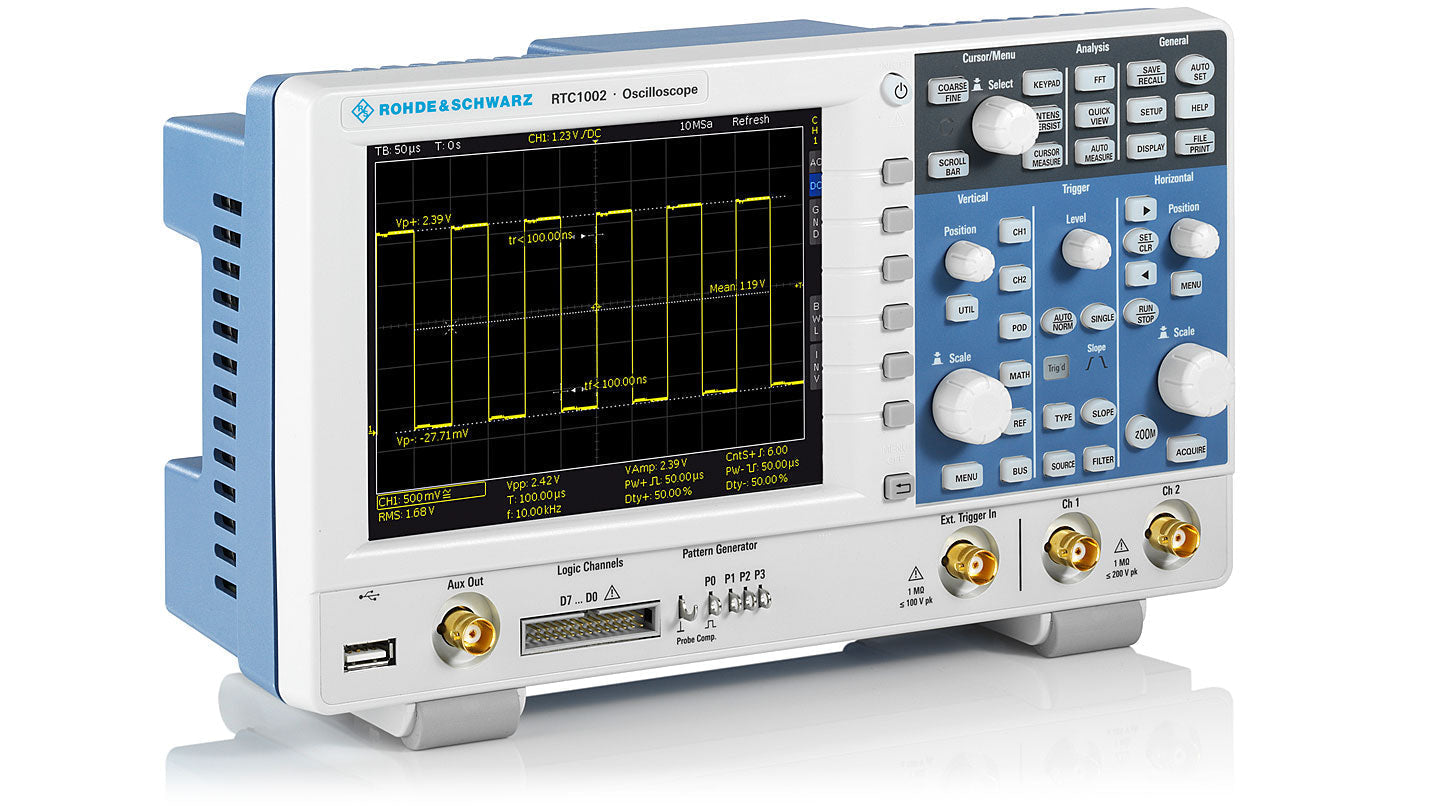

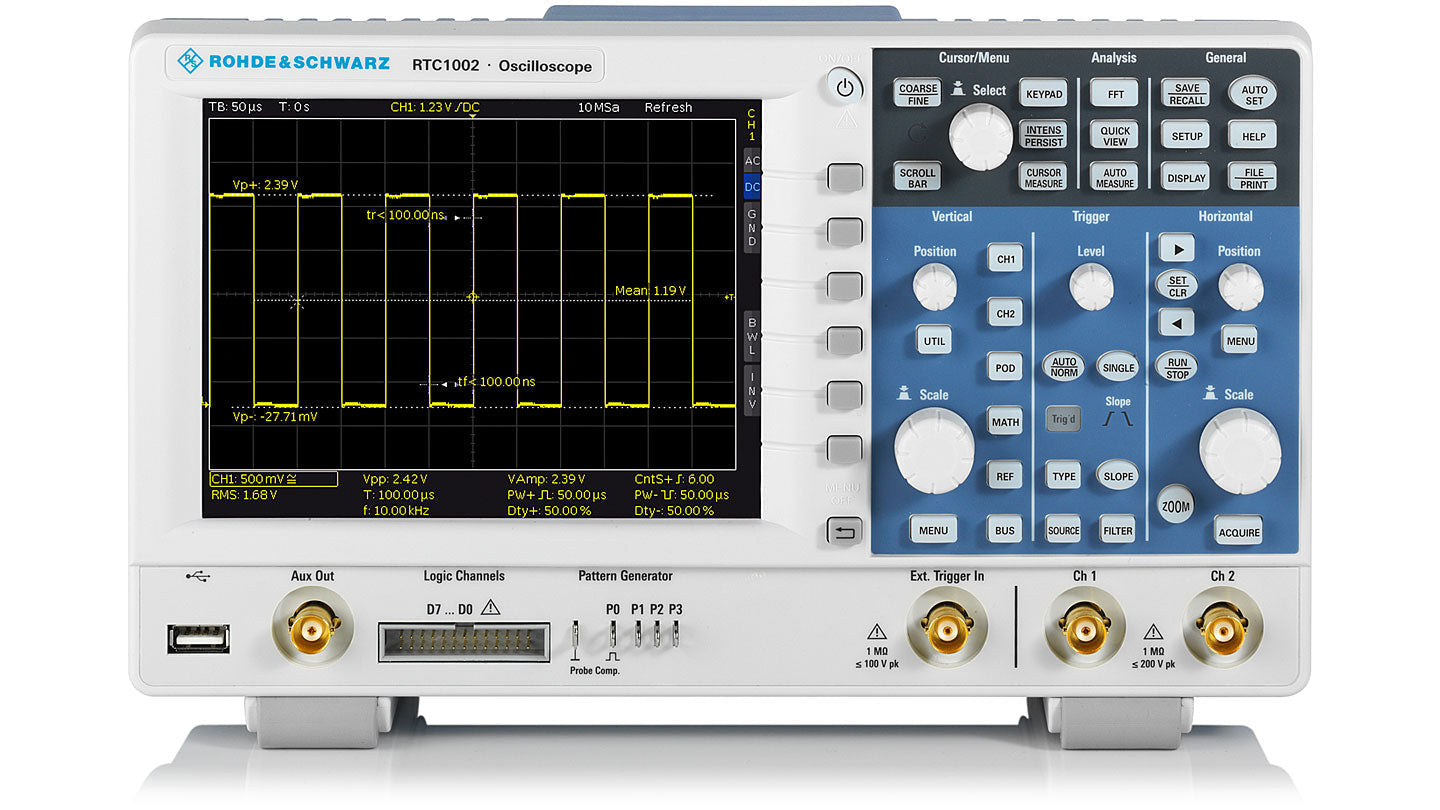

R&S® RTC1002 + RTC-B221 + RTC-B1 100 MHz Oscilloscope, 2 Channels

Multifunctional oscilloscope at an affordable price

The RTC1K-102M (R&S®RTC1002+R&S® RTC-B221+R&S®RTC-B1) from Rohde & Schwarz is a 2-channel, 100MHz RTC1000 series digital oscilloscope. This X-in-one instrument offers the functionality of an oscilloscope, logic analyzer, protocol analyzer, frequency analyzer, pattern generator, function generator, digital voltmeter, and component tester in a single device. Includes a wide range of expansion options from which users can gain added value with minimal footprint on the bench.

Ideal for a wide group of users,, including embedded developers, maintenance engineers, for the education world

Features

• 6.5-inch VGA color display (640 x 480 pixels)
• Sampling rate up to 2Gsample/s, memory thickness up to 2Msample
• Optimized for "fast button" operations
• 8-bit ADC, timebase accuracy: 50ppm
• Minimum input sensitivity: 1mV/div
• Refresh rate: 10,000 waveforms/s
• x1 USB host, USB device, LAN interfaces
• I2C protocol, SPI, UART/RS232/RS422/RS485, CAN, LIN (optional)
• Waveform generator and 4bit pattern generator
• Oscilloscope measurements: 285mm x 175mm x 140mm (W x H x D), weight 1.7Kg

R&S® RTC1K-102M 100 MHz Oscilloscope, 2 channels (RTC1002+RTC-B221+RTC-B1)
