Prodigy  |  SKU: PGY-QSPI-EX-PD

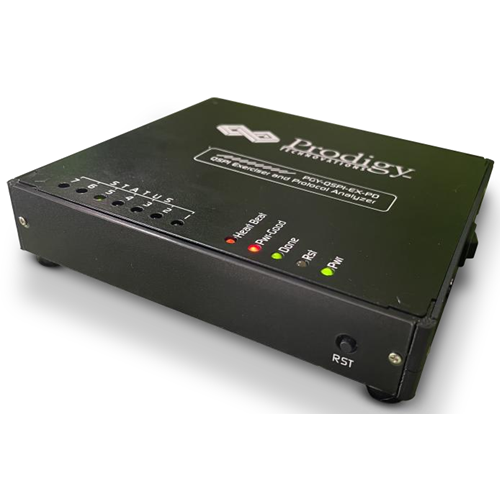

Prodigy PGY-QSPI-EX-PD Protocol Analyzer

€11.548,00
Tax included Shipping calculated at checkout.

QSPI Protocol Analyzer (PGY-QSPI-EX-PD) is the Protocol Analyzer with multiple features to capture and debug communication between host and design under test. PGY-QSPI-EX-PD is the leading instrument that enables the design and test engineers to test the respective QSPI designs for their specifications by configuring the PGY-QSPI-EX-PD as Master/Slave, generating QSPI traffic, and decoding the QSPI protocol decode packets.
PGY-QSPI-EX-PD is the leading instrument that enables the design and test engineers to test the QSPI designs for its specifications by configuring PGY-QSPI-EX-PD as master/slave, generating QSPI traffic with error injection capability and decoding QSPI Protocol packets.

Description












Features

-Supports QSPI speeds of up to 80MHz
-Ability to configure it as Master or Slave
-Simultaneously generate QSPI traffic and Protocol decode of the Bus
-QSPI Master and Slaves
-STR and DTR Transfer rates
-Extended, Dual, and Quad QSPI Modes Supported
-Variable QSPI data speeds and duty cycle
-Continuous streaming of protocol data to the host computer to provide a large buffer
-A timing diagram of Protocol decoded bus
-Listing view of Protocol activity
-Error Analysis in Protocol Decode
-Ability to write exerciser script to combine multiple data frame generation at different data speeds
-USB 2.0/3.0 host computer interface
-API support for automation in Python or C++

Manuals

QSPI-datasheet.pdf
