SD Protoocl Analyzer ( supports SD2.0 and SD3.0 (UHS-I))

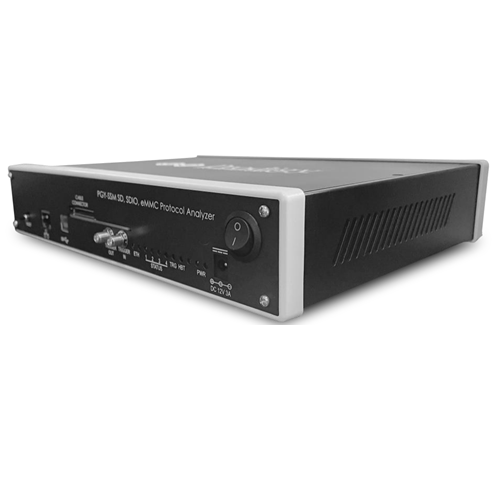

SD Protocol Analyzer, SDIO Protocol Analyzer, and eMMC Protocol Analyzer (PGY-SSM) are the Protocol Analyzers with multiple features to capture and debug communication between host and design under test. PGY-SSM Protocol Analyzer supports SD, SDIO, and eMMC for data rates up to 200MHz DDR mode. PGY-SSM is the industry's first eMMC protocol analyzer that supports versions 4.41, 4.51, 5.0, and 5.1 specifications.
PGY-SSM SD/SDIO/eMMC Protocol Analyzer is a comprehensive Protocol Analyzer with multiple features to capture and debug communication between host and memory under test. PGY-SSM Protocol Analyzer supports SD, SDIO, and eMMC for data rates up to 200MHz DDR mode. PGY-SSM is the industry's first eMMC protocol analyzer that supports versions 4.41, 4.51, 5.0, and 5.1 specifications. The innovative active probe has minimal electrical loading on the device under test (DUT) and allows protocol data capture without affecting the performance of the DUT. In an industry-first feature, the PGY-SSM protocol analyzer allows continuous streaming of protocol data from the PGY-SSM Protocol Analyzer to the host system (using USB3.0 or GbE interface) running the UI. Comprehensive decoding of protocol data, command units, and real-time error analysis enables effective verification of communication of SD/SDIO/eMMC host and device.
PGY-SSM Protocol Analyzer enables design and verification engineers to test and debug SD, SDIO, and eMMC by triggering command, response, data, or CRC errors. It also provides instantaneous decoding of Command, Response, CID, CSD, and Ext CSD registers. The Analytics feature offers an easy analysis graphical representation of command, response, data, and frequency of operation for the acquired duration.
