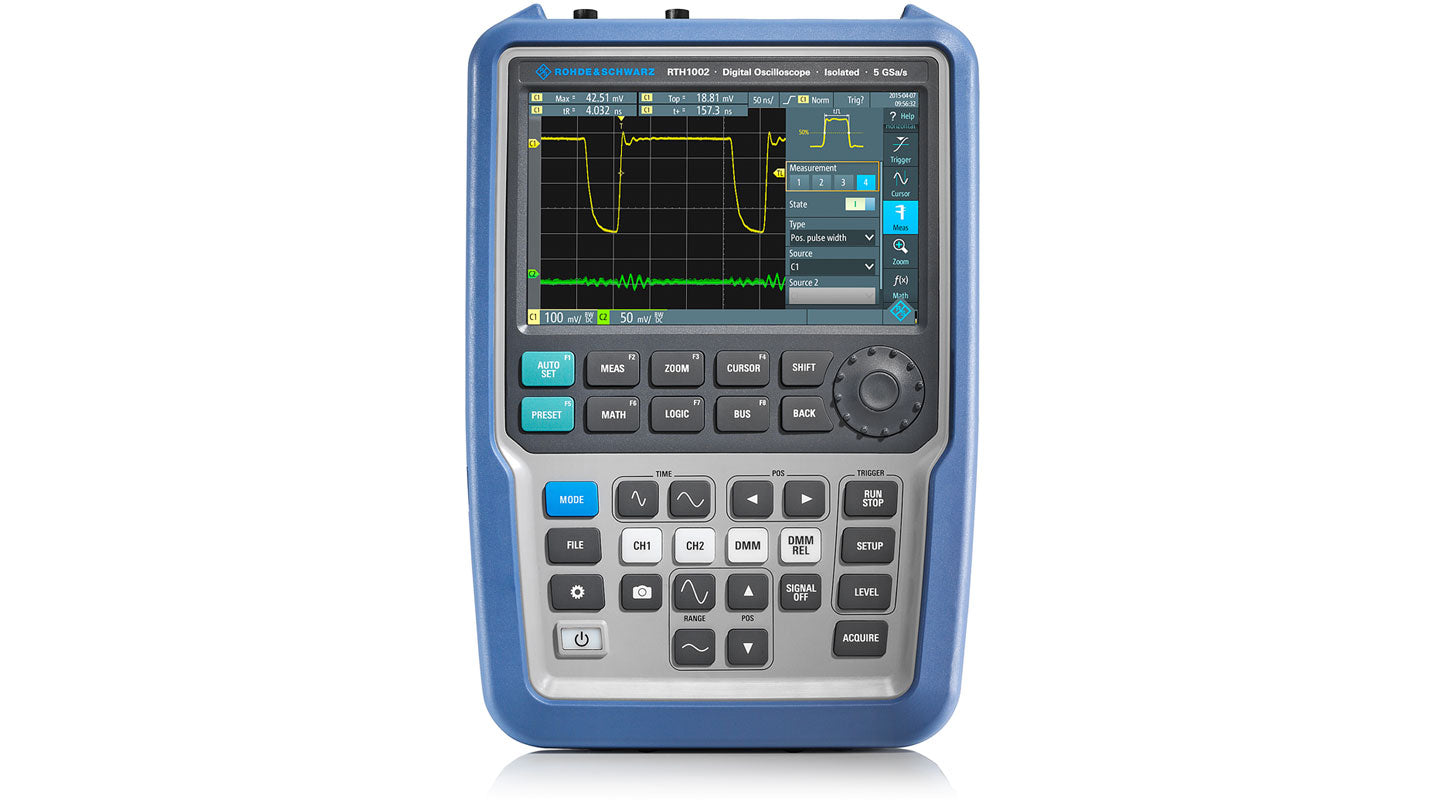

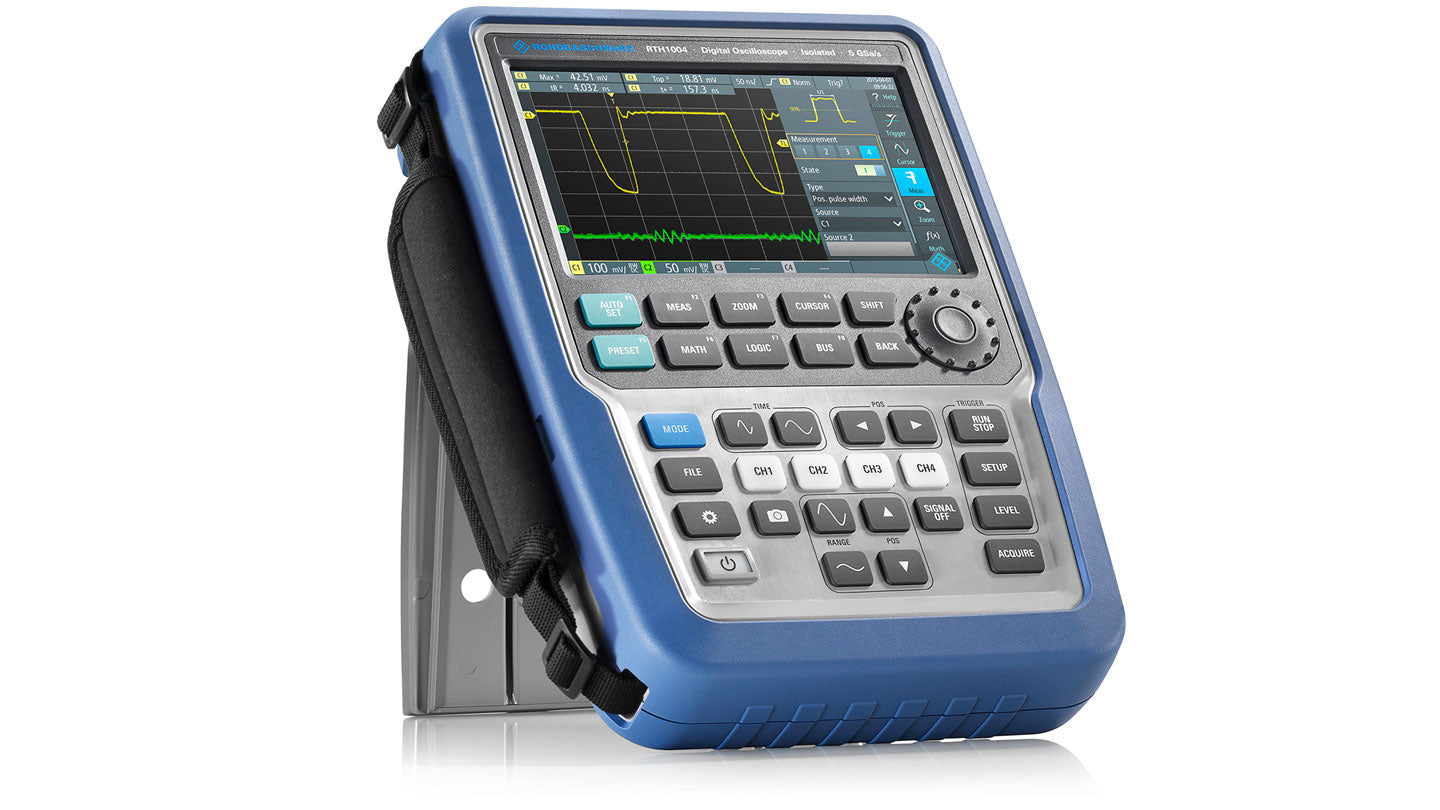

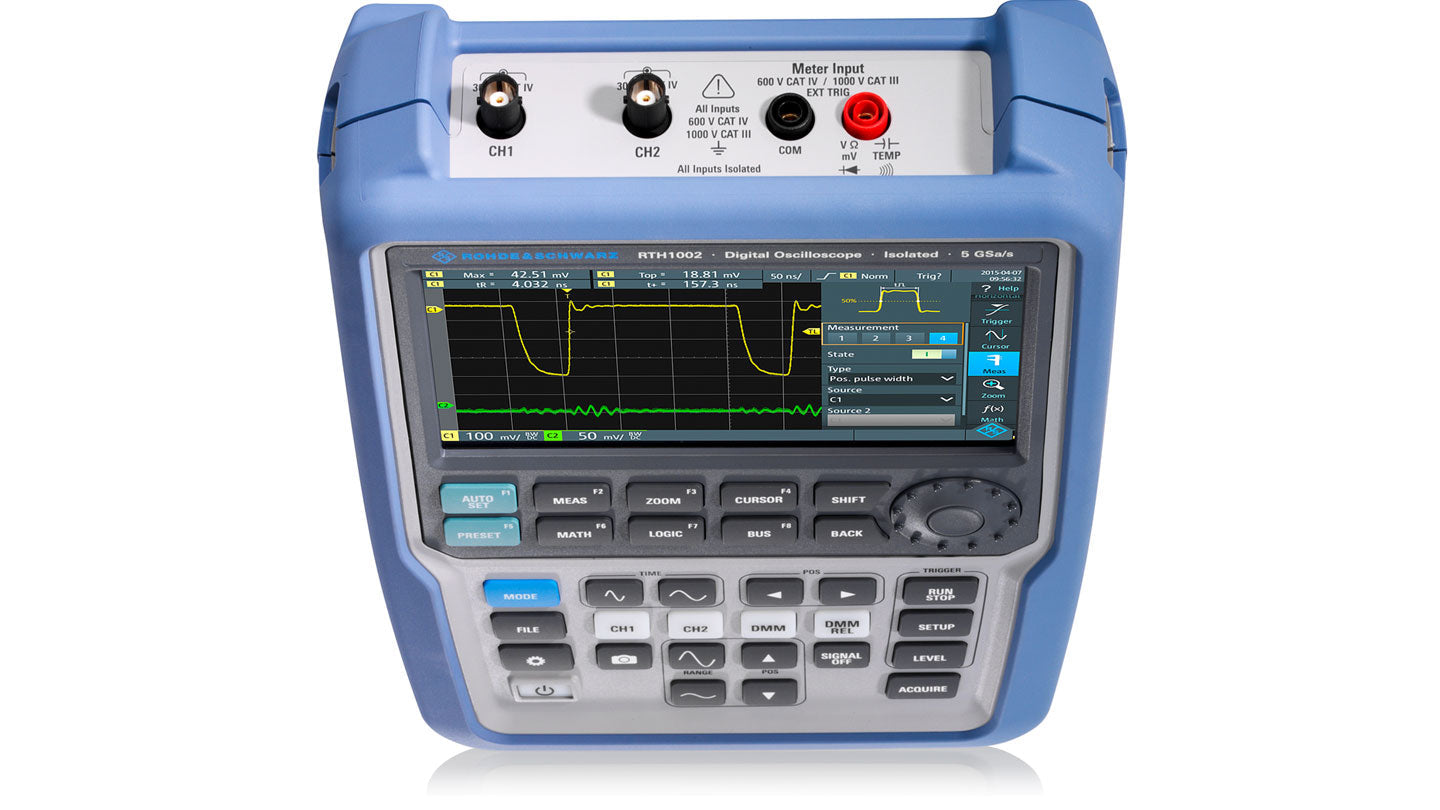

R&S® RTH1002 Scope Rider 60 MHz Handheld Oscilloscope, 2 Channels

Compact portable oscilloscope with the performance of laboratory instruments

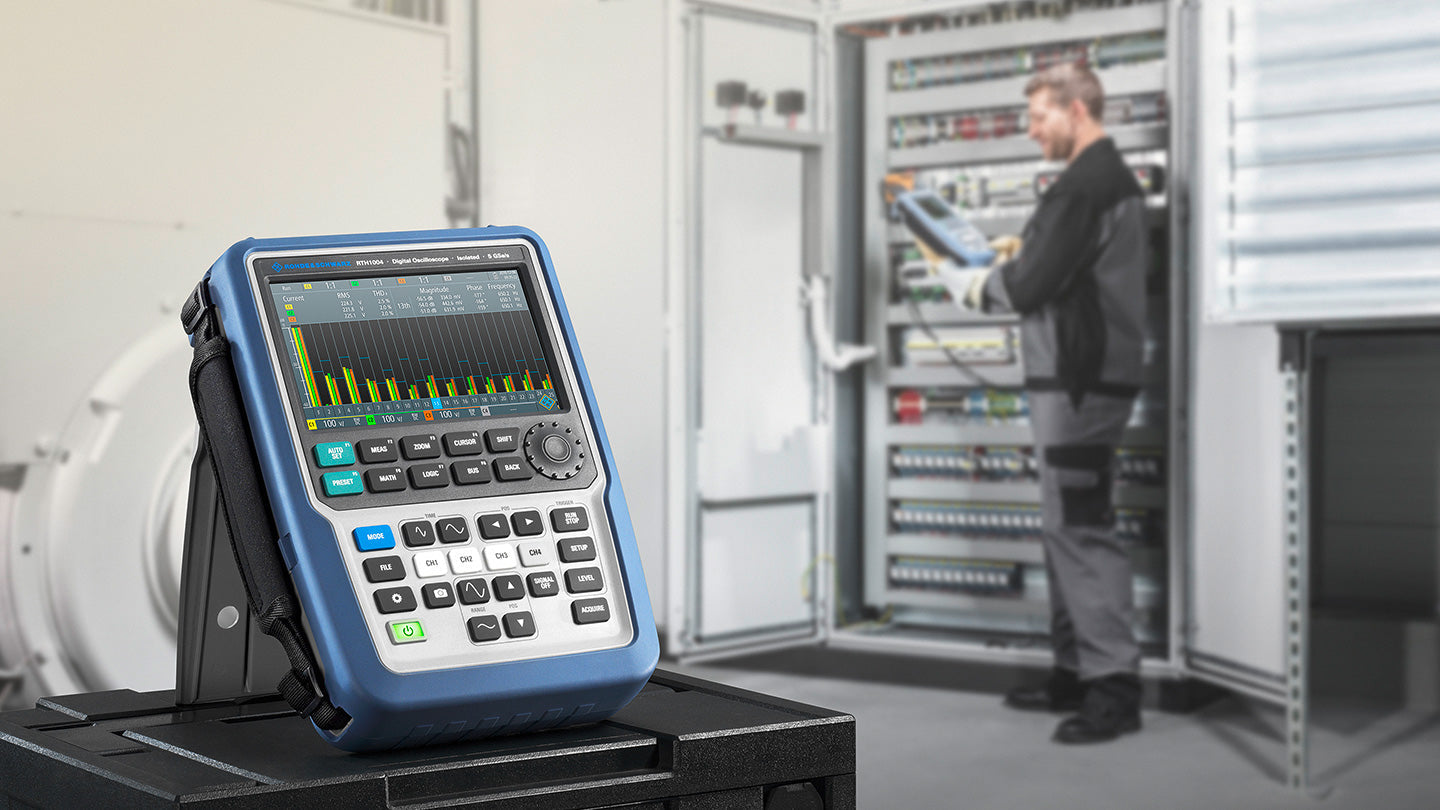

The R&S Scope Rider portable digital oscilloscope combines five instruments in a compact size, and its rugged design makes it perfect for radio stations and maintenance work.

The instrument features isolated input and communication interfaces and complies with CAT IV standards; it is also capable of making measurements on low-voltage station sources up to 600 V.

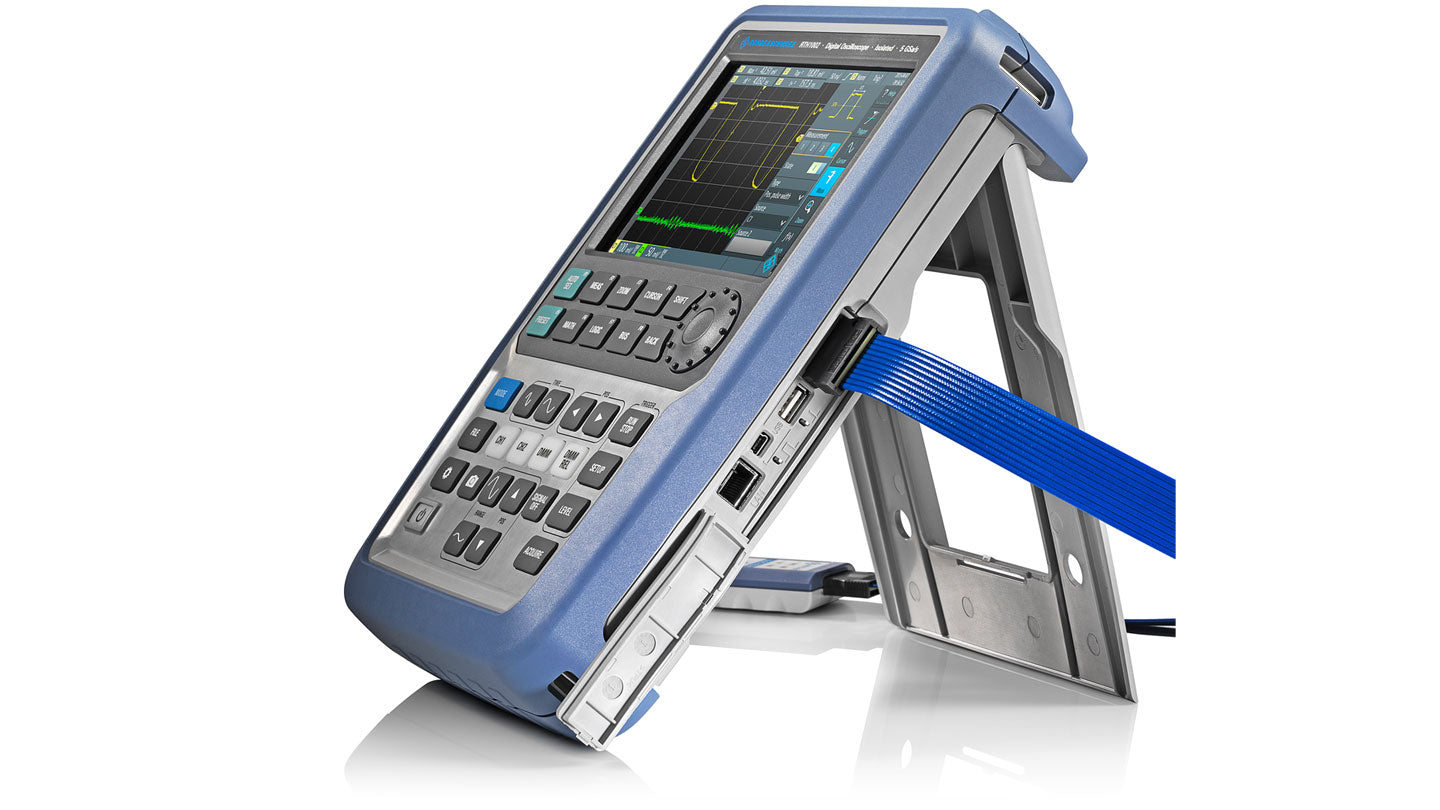

Digital control signals can be analyzed with the 8-bit logic interface isolated from analog input channels. The ability to trigger and encode protocols is remarkable and provides direct display of decoded messages. If additional security is required, the RTH1002 can be remotely controlled with the Web browser via wireless LAN, thus separating the location of the measurement from the place where the user commands the instrument.

Features

• 60 MHz with a sampling rate of 5 Gsample/s
• 2 isolated channels with CAT IV 600 V / CAT III 1000 V voltage rating
• 10-bit ADC
• 50000 waveforms per second
• Operation via capacitive touchscreen and keypad
• 5 built-in modes: oscilloscope with laboratory performance; logic analyzer; protocol analyzer; data logger; digital multimeter (built-in)
• IP51 enclosure meeting military environmental requirements
• Wireless LAN and Ethernet for remote control and fast data access via the web
• Battery operation for more than 4 hours on a single charge

R&S® RTH1002 Scope Rider 60 MHz handheld oscilloscope, 2 channels
