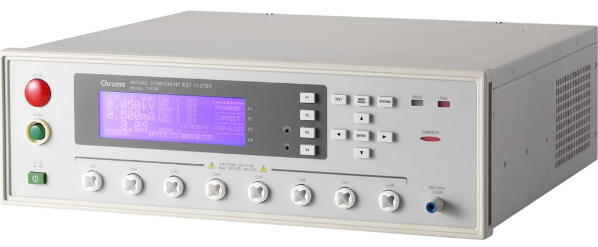

Chroma 19035-S electrical safety verification test scanner

Model 19035 tester is an electrical safety test equipment , complete , designed to meet the requirements for winding components of motors, transformers and heating equipment. Most winding components are equipped with multiple windings as is the case with three-phase motors, double-winding transformers, etc. In addition, winding components need the use of a high voltage impulse winding tester to check for insulation problems at winding devices.

Model 19035 provides OSC and DCR functions so as to check whether bad contacts or short circuits have taken place during the test procedure. It solves any problems interesting the contacts of winding components of motors, transformers, etc., greatly improving the quality of tests and prolonging the life of the test device.

• High Speed Contact Check (HSCC)
• SUB-STEP function
• Open / Short Check (OSC)
• GFI human protection
• Flashover detection
• Key lock function
• RS232 Interface (standard*1)
• GPIB & HANDLER (optional)
• CE mark
