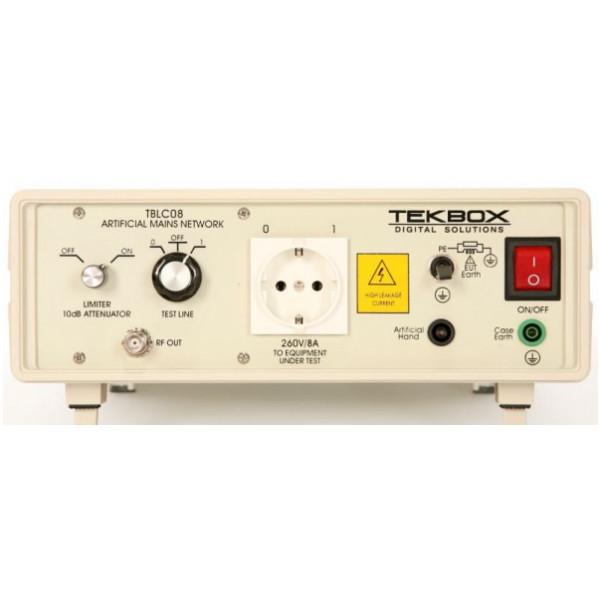

TekBox TBLC08 50UH LISN (line impedance stabilization network) - CISPR 16

The TekBox TBLC08 is a line impedance stabilization network for measuring line conducted interference in the range of 9KHz to 30MHz, according to the CISPR16 standard. The device is designed to test single-phase AC-powered equipment with supply voltage up to a maximum of 260v.
The device has a switchable limiter/attenuator and an artificial manual connection.
The device is available with country-specific DUT sockets.


Features
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 ohms ¦ (50 µH + 5 ohms)
- Artificial hand: 220 pF + 511 ohms
- Switchable PE: 50 ohm / 50 µH
- Limiter / attenuator: 150 kHz to 30 MHz 10 dB
- Air core inductors
- Line voltage: max. 240V / 50 - 60 Hz, CAT
- Max. current: 8A @ 23°C
- DUT socket: country specific
- Measurement connector: 50 BNC
- Power connector: IEC 60320 C13
- Operating Temperature Range: +5°C ... + 40°C; 5% to 80% RH
- Safety: Safety Class I, IEC 1010-01

Application
EMC pre-compliance testing of conducted noise
