TekBox EMCVIEW PRO PC SOFTWARE FOR EMC PRE-COMPLIANCE TESTING.

Tekbox EMC compliance software EMCview for PC is an easy-to-use product , a perfect complement to automated testing using LISNs and Tekbox TEM cells.

The installation and setup time of the software is really low. The software is ready for measurements immediately after installation. All emission-related CISPR-xx (EN550xx) measurements and some automotive manufacturer standards are preconfigured in the corresponding project files.

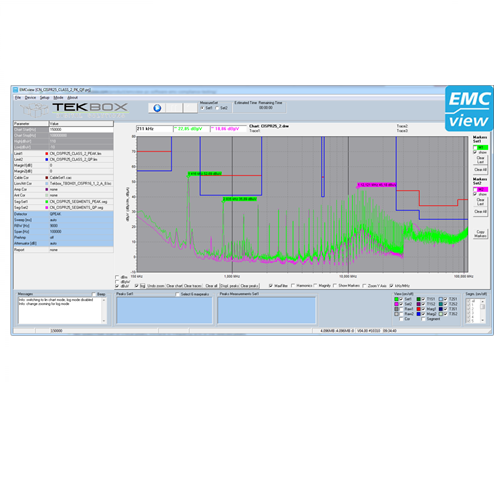

The chart supports two complete measurement cycles such as Average / Quasi-Peak or Peak / Quasi-Peak and added rapid Quasi-Peak scanning of critical peaks.
In addition, EMCview together with Tekbox's GPS receiver (TBGPS1) can be used to perform RF coverage measurements. An export function creates KML files that link the result to Google Maps.
Immunity testing is supported by a menu that controls the spectrum analyzer's tracking generator.

EMCview PRO enables real-time measurements for spectrum analyzers operating in real-time. EMCview PRO also offers advanced conducted immunity testing capabilities for spectrum analyzers with tracking generators. The EMCview standard license, EMCview PRO and the upgrade package to upgrade the standard license to Pro are available.

EMCview currently supports the following spectrum analyzers.

• Rigol (DSA and RSA)
• Siglent (SSA/SSA plus/SSA -R and SVA)
• R&S (FPC and FPH)
• OWON XSA and HSA
• Teledyne Test Tools T3SA series
• BK Precision 2683 series
• ComPower SPA-900TG series
• Multicomp MP700xyz series
• TheEMCShop ESA series
• UNI-T UTS series

The 'spectrum analyzer must be equipped with the EMI option.

EMCVIEW STANDARD FEATURES

• numerous pre-configured project files for all relevant EMC standards
• Graph supports two complete measurement runs, same as in test house; simultaneous measurement with two detectors available for a few analyzers
• Fast Quasi-Peak scan of critical peaks, immune to frequency drift of the selected peaks
• Fast pre-scan
• configurable limit lines and segment files
• configurable correction files for cables, LISNs, amplifiers, antennas, current probes, etc.
• configurable margins for the identification and selection of critical peaks
• supports import and overlaying of reference measurements for comparison purpose
• linear or logarithmic frequency axis
• Harmonic markers
• automatic creation of test reports
• many import/export-functions
• graphs can be saved as charts containing meta-data, graphs can be loaded together with the corresponding measurement configuration
• RF coverage measurements
• tracking generator control for immunity testing using TEM cells
• many post-processing features
• useful calculators

EMCVIEW PRO FEATURES

• Everything the standard version offers
• Immunity testing using CDNs or BCI probes
• Rapid measurement, supporting real time bandwidth capability of Siglent SSA3000X-R series and Rigol RSA series

Applications

• "In house" measurement of EMC behavior during the product design phase
• EMC training in laboratories , schools , universities
• Pre-compliance testing of products before submitting them to laboratories
• reduction of testing costs
• reduction of product availability time on the market

Documents:

EMCview manual
EMCview FAQ
Application note: Conducted noise measurements using the TBOH01 and EMCView
Application note: Conducted noise measurements using the TBLC08 and EMCView
Application note: RF current probes with EMCview
