Teradyne  |  SKU: TestStation_LH

Teradyne: TestStation LH

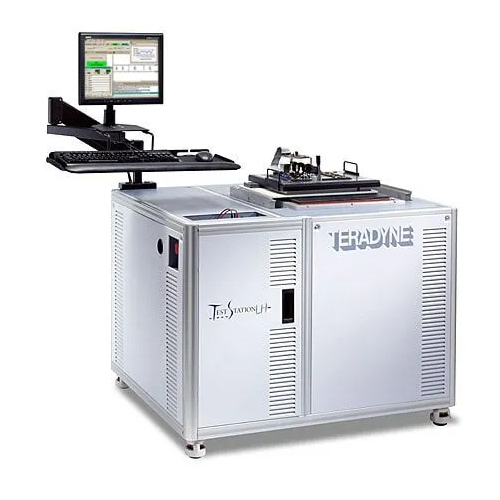

TestStation LH

Affordable In-Circuit Test System

The TestStation LH in-circuit  test system is a lower-cost, small footprint, feature scalable version of Teradyne’s popular, award winning TestStation product family.

TestStation
LH features Safetest protection technologies for accurate,
reliable and safe testing of the lowest low-voltage technologies.

Description
TestStation LH Compact footprint, suitable for manual and U-turn production lines
Supports up to 4,096 analog or analog/hybrid mix test points
Multiple pincard options to target specific end applications
TestStation LHS Automation-ready with a robot-friendly form factor
Compact footprint, suitable for manual and U-turn production lines
Supports up to 4,096 analog or analog/hybrid mix test points
TestStation LX System frame and lifter assembly supporting test fixtures up to 350 lbs
Supports up to 7,680 test points
Compatible with Genrad 228X and TS8X legacy in-circuit test programs and fixtures
TestStation LX2 high-pincount production test system capable of supporting up to 15,360 test points within the same footprint as the LX
It supports program and fixture transfers from the LX and can accommodate test fixtures up to 800 lbs
Testing complex, multi-core routers and servers
Integrated boundary scan, built-in self-test, and powered functional pre-screen requirements

Features

Features
& Options

The TestStation LH system supports all the standard features of the TestStation platform, but are unique in the following ways:

-Economical, small footprint, feature scalable system
-Satisfies low and high pin count applications
-Supports up to 16 pin card slots
-Configurable with analog only, pure pin, hybrid, and high-density pin cards

Test points ranges up to 2,048 to 4,096
