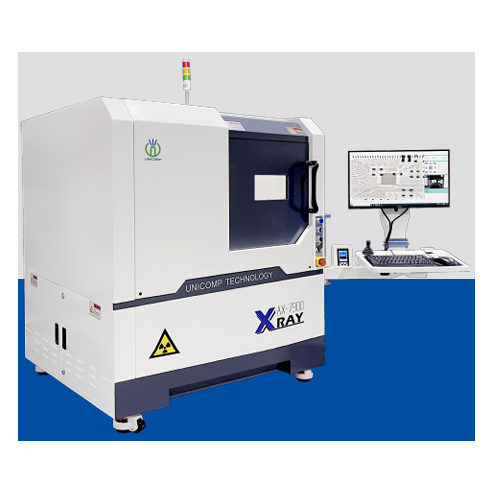

Unicomp: AX7900 DXI System X-RAY Machine

90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.

Description
 Item Definition Specs
System Parameters Size 1100(L)x1100(W)x1500(H)mm

Weight 1000kg

Power 220AC/50Hz

Power Consumption 0.8kW
X-ray Tube Type Closed

Max.Voltage 80kV/90kV

Max.Power 12W/8W

Spot Size 5μm/15μm
X-ray System Intensifier FPD

Monitor 22 ‘’LCD

System Magnification 160 X/360X
Detection Region Max.Loading Size 440mm x 400mm

Max.Inspection Area 420mm x 380mm
X-ray Leakage
<1μSv/h

Features

-90KV 5μm X-ray tube, FPD Detector.
-Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
-Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).
-Multi-function DXI image processing system.
-X/Y programming function for multiple image inspection routines
-Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
-BGA void/area auto-measurement plus report generation.

Manuals


AX7900_datasheet
